Same model may have multiple batches, images only for reference.

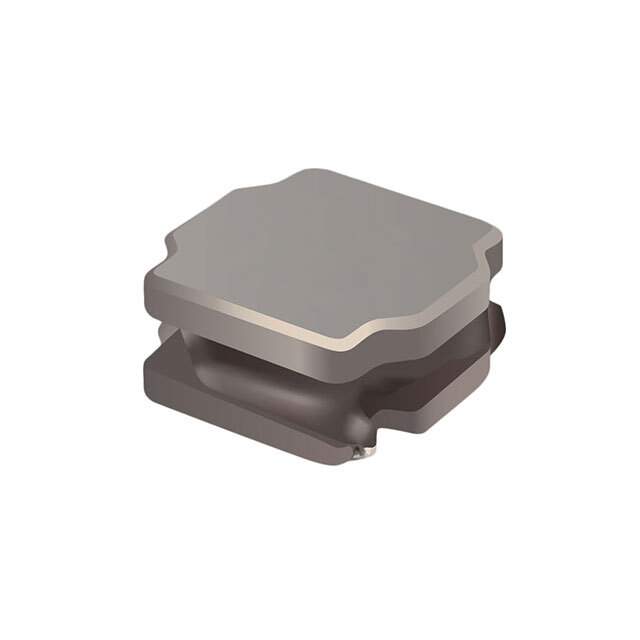

SRN8040TA-221M Real Image
Same model may have multiple batches, images only for reference.

SRN8040TA-221M

Part No SRN8040TA-221M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN8040TA-221M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 990mA
Shielding Semi-Shielded
DC Resistance (DCR) 610mOhm
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 5.5MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN8040TA
Other Names SRN8040TA-221MCT,SRN8040TA-221MDKR,SRN8040TA-221MTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274259-SRN8040TA-221M
Ultra Librarian 3D Model Ultra Librarian SRN8040TA-221M CAD Model

Description

The SRN8040TA series inductor model number 1274259-SRN8040TA-221M, manufactured by Bourns Inc., is a fixed inductor with a drum core and wirewound type.

  • Shielding: Semi-shielded
  • Inductance: 220 μH
  • Height Seated: 0.177 inches or 4.50mm
  • Standard Package: 1,000 pieces per reel
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • AEC-Q200: Rated
  • Core Material: Ferrite
  • Q @ Freq: 10 @ 1MHz
  • Frequency Self-Resonant: 5.5MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 610mOhm
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.315 inches L x 0.315 inches W or 8.00mm x 8.00mm
