Same model may have multiple batches, images only for reference.

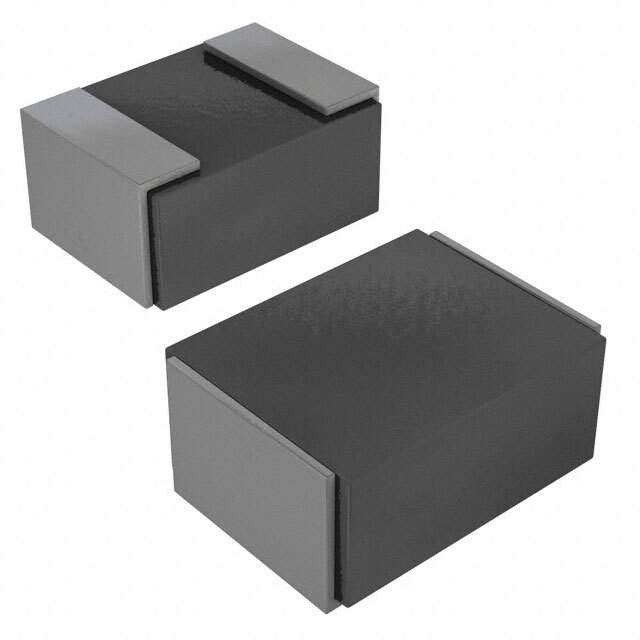

SRP2512-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP2512-R47M

Part No SRP2512-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP2512-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP2512
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 5.3A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 39 @ 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP2512
Other Names SRP2512-R47MCT,SRP2512-R47MDKR,SRP2512-R47MTR,2266-SRP2512-R47M
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273997-SRP2512-R47M
Ultra Librarian 3D Model Ultra Librarian SRP2512-R47M CAD Model

Description

The SRP2512-R47M inductor from Bourns Inc. is a shielded, wirewound drum core type inductor.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • DC Resistance: 25 mOhm Max
  • Height Seated: 0.047" (1.20 mm)
  • Package: Tape and Reel
  • Core Material: Iron Powder
  • Q Value: 39 @ 1 MHz
  • Current Rating: 4.5 A
  • Current Saturation: 5.3 A
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
  • Package Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Series: SRP2512
  • Standard Package Quantity: 3,000
