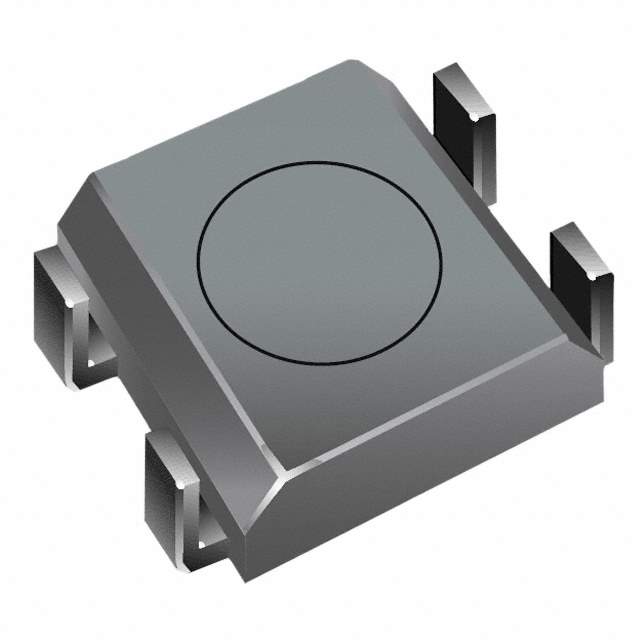

SRR0618-330ML

Part No SRR0618-330ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0618
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 430 mA
Current - Saturation (Isat) 530mA
Shielding Shielded
DC Resistance (DCR) 680mOhm Max
Q @ Freq 30 @ 100kHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.063" (1.60mm)
Base Product Number SRR0618
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273742-SRR0618-330ML
Ultra Librarian 3D Model Ultra Librarian SRR0618-330ML CAD Model

Description

The SRR0618 series inductor from Bourns Inc. is a drum core, wirewound type inductor with a shielding feature.

  • Package: tape and reel
  • Standard Package: 900
  • Inductance: 33 µH
  • Height-Seated Maximum: 0.063 inches (1.60mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 680mOhm maximum
  • Material used for the core: ferrite
  • Q @ Freq: 30 @ 100kHz
  • Frequency Self-Resonant: 22MHz
  • Package/Case: nonstandard
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.197 inches L x 0.197 inches W (5.00mm x 5.00mm)
  • Status: Obsolete
