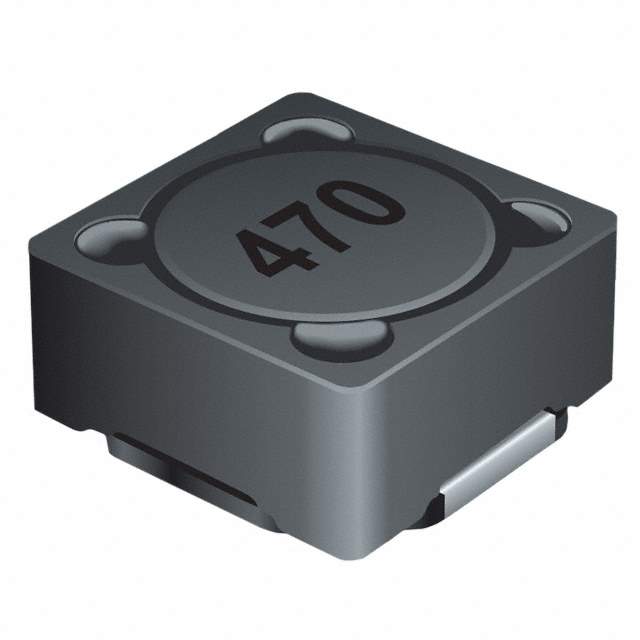

SRR0735A-331M Real Image
Same model may have multiple batches, images only for reference.

SRR0735A-331M

Part No SRR0735A-331M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330UH 330MA 2 OHM SMD / 330 µH Shielded Drum Core, Wirewound Inductor 330 mA 2Ohm Max Nonstandard
Datasheet
SRR0735A-331M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 330 mA
Current - Saturation (Isat) 330mA
Shielding Shielded
DC Resistance (DCR) 2Ohm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.146" (3.70mm)
Base Product Number SRR0735A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRR0735A-331M-ND,SRR0735A-331MCT,SRR0735A-331MTR,SRR0735A-331MDKR
Standard Package 1,500
Win Source Part Number 1327902-SRR0735A-331M
Ultra Librarian 3D Model Ultra Librarian SRR0735A-331M CAD Model

Description

The Bourns Inc. SRR0735A-331M is a shielded fixed inductor with an inductance of 330 µH.

  • Type: Drum core, wirewound
  • Core Material: Ferrite
  • Tolerance: ±20%
  • DC Resistance: 2Ohm Max
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 330 mA
  • AEC-Q200: Rated
  • Case/Package: Non-standard
  • Packaging: Reels of 1,500
  • Mounting: Surface Mountable
  • RoHS3 Compliant: Yes
  • REACH Affected: No
