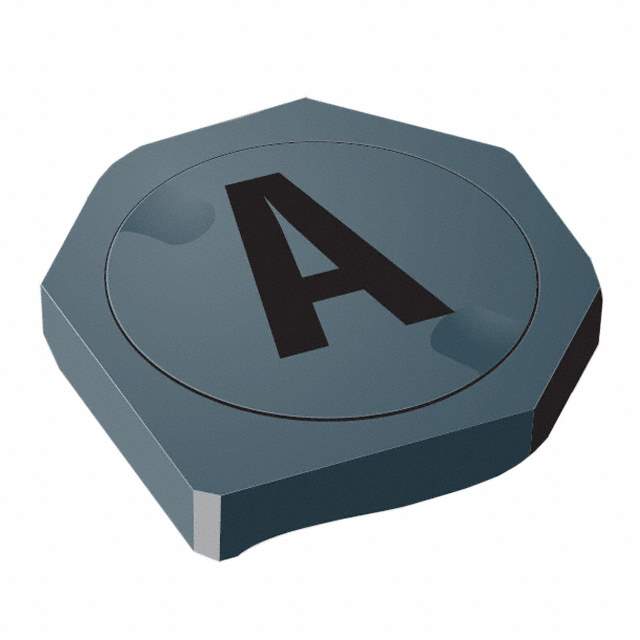

SRU3009-100Y

Part No SRU3009-100Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU3009
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±30%
Current Rating (Amps) 280 mA
Current - Saturation (Isat) 350mA
Shielding Shielded
DC Resistance (DCR) 760mOhm Max
Q @ Freq 8.5 @ 2.52MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max) 0.041" (1.05mm)
Base Product Number SRU3009
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273087-SRU3009-100Y
Ultra Librarian 3D Model Ultra Librarian SRU3009-100Y CAD Model

Description

The SRU3009-100Y is a fixed inductor with a shielded drum core wirewound type manufactured by Bourns Inc.

  • Inductance: 10 µH
  • Tolerance: ±30%
  • Package Type: Tape and Reel
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C ~ 125°C
