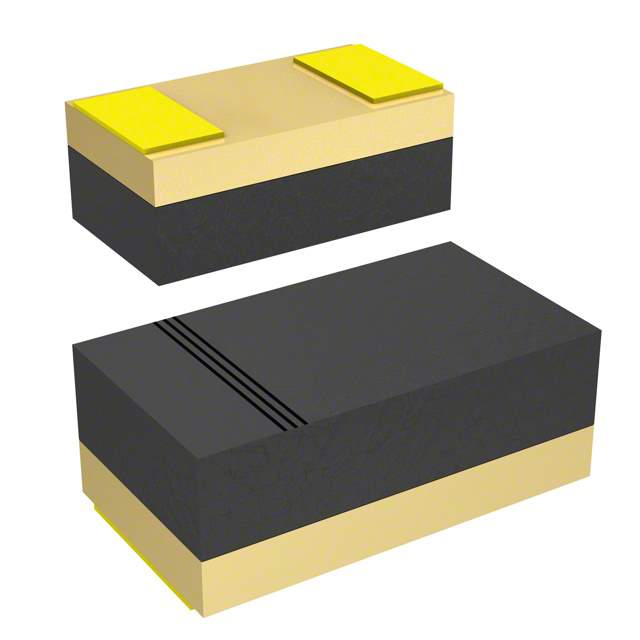

CD0603-B00340 Real Image
Same model may have multiple batches, images only for reference.

CD0603-B00340

Part No CD0603-B00340
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 30MA 0603 / Diode Small Signal Schottky 45V 0.03A 2-Pin Case 0603(1608Metric) T/R
Datasheet
CD0603-B00340 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel package
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Maximum) @ If 370mV @ 1mA
Current - Reverse Leakage @ Vr 1μA @ 40V
Capacitance @ Vr, F 1.5pF @ 1V, 1MHz
Mounting SMD
Package 0603
Manufacturer Package 0603
Operating Temperature - Junction -40°C ~ 125°C
Win Source Part Number 771319-CD0603-B00340
Popularity Medium
Supply and Demand Status Limited
Family Name CD0603B00340
Introduction Date July 27, 2005
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CD0603-B00340 CAD Model

Description

The Bourns Inc. CD0603-B00340 is a Schottky diode.

  • Package: 0603
  • Forward Voltage: 370mV @ 1mA
  • Reverse Voltage: 40V
  • Average Rectified Current: 30mA
  • Reverse Leakage Current: 1μA @ 40V
  • Capacitance: 1.5pF @ 1V, 1MHz
  • Operating Temperature: -40°C to 125°C
  • Package Type: Reel
  • Market Status: Popular
