Same model may have multiple batches, images only for reference.

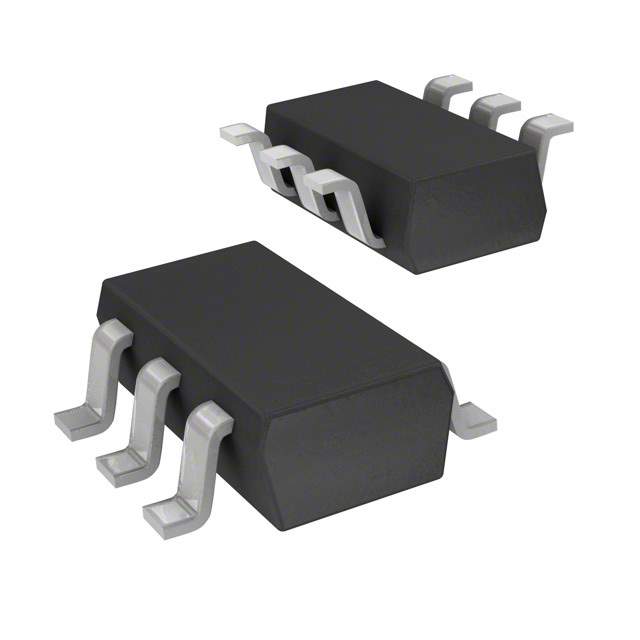

CDSOT236-T12C Real Image
Same model may have multiple batches, images only for reference.

CDSOT236-T12C

Part No CDSOT236-T12C
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 29.2VC SOT23-6
Datasheet
CDSOT236-T12C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 5
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 29.2V
Peak Pulse Current(Ippm) 12A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-6
Win Source Part Number 1029006-CDSOT236-T12C
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDSOT236-T12C CAD Model

Description

The Bourns Inc. 1029006-CDSOT236-T12C is a zener type circuit protection electronic component that can be used in general purpose applications.

  • Packaging: reel-TR
  • Mounting: SMD (SMT)
  • Channels: 5 bidirectional
  • Capacitance: 80pF @ 1MHz
  • Operating Temperature: -55°C to 150°C (TJ)
  • Supply and Demand Status: balanced
