Same model may have multiple batches, images only for reference.

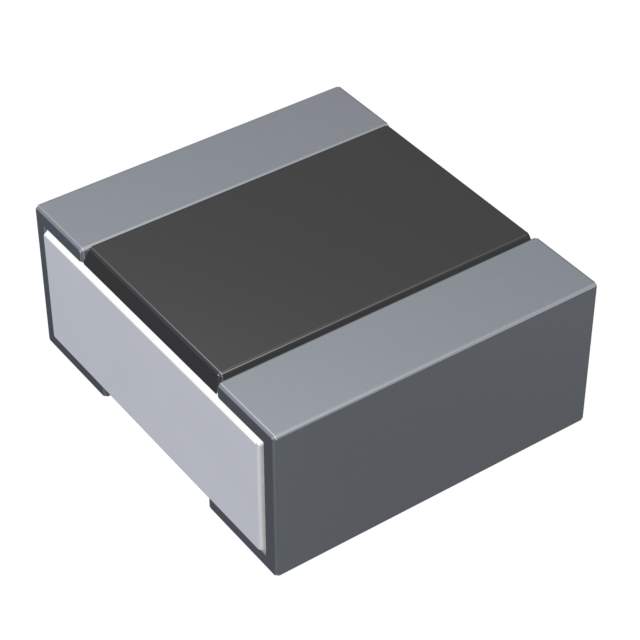

CR0402-FX-1000GLF Real Image
Same model may have multiple batches, images only for reference.

CR0402-FX-1000GLF

Part No CR0402-FX-1000GLF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 1% 1/16W 0402 / 100 Ohms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Datasheet
CR0402-FX-1000GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR0402
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number CR0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names CR0402FX1000GLF,CR0402-FX-1000GLFCT,CR0402-FX-1000GLFTR,CR0402-FX-1000GLFDKR
Standard Package 10,000
Win Source Part Number 1126666-CR0402-FX-1000GLF
Ultra Librarian 3D Model Ultra Librarian CR0402-FX-1000GLF CAD Model

Description

The CR0402-FX-1000GLF is a chip resistor from Bourns Inc.

  • Resistance: 100 Ohms
  • Power Rating: 0.063W, 1/16W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Package: 0402 (1005 Metric)
  • Operating Temperature Range: -55°C to 155°C
