B0540WS ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

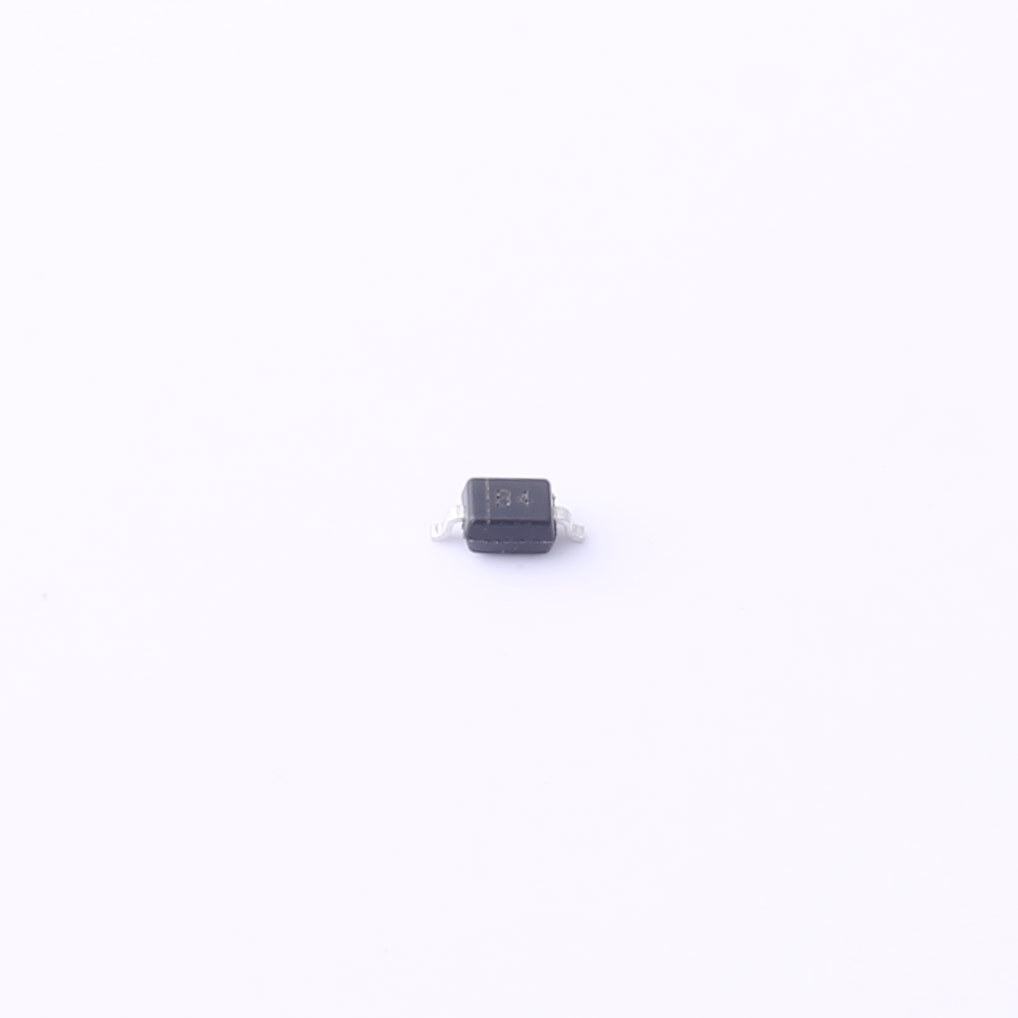

Same model may have multiple batches, images only for reference.

B0540WS

Part No B0540WS
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Schottky Diodes
Description 40V 620mV@1A 500mA SOD-323
Datasheet
B0540WS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329814-B0540WS
Package Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 510mV @ 500mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20µA @ 40V
Capacitance @ Vr, F 170pF @ 0V, 1MHz
Grade -
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 125°C
Ultra Librarian 3D Model Ultra Librarian B0540WS CAD Model
