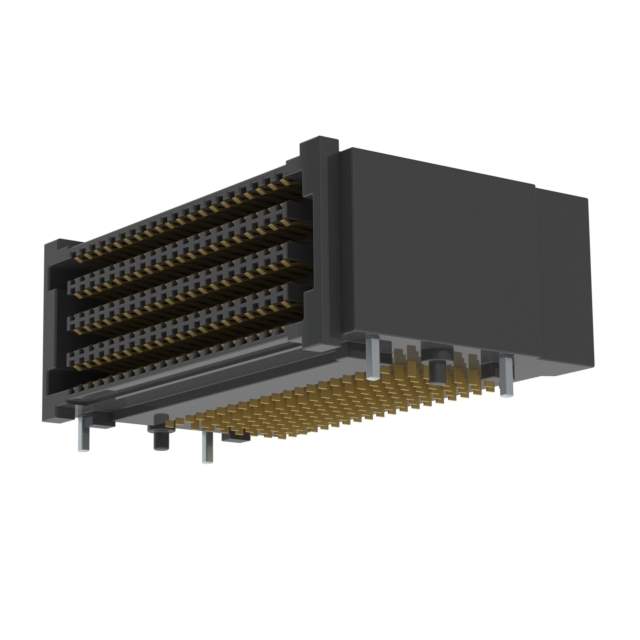

SEAF-20-01-L-08-2-RA-TR

Name: SEAF-20-01-L-08-2-RA-TR
Brand: Samtec Inc.
SKU: 1293868
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAF-20-01-L-08-2-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-01-L-08-2-RA-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.511" (12.99mm)
Base Product Number	SEAF-20
Other Names	612-SEAF-20-01-L-08-2-RA-TRCT,SEAF-20-01-L-08-2-RA-TR,612-SEAF-20-01-L-08-2-RA-TR,612-SEAF-20-01-L-08-2-RA-TRDKR
Standard Package	75
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293868-SEAF-20-01-L-08-2-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-01-L-08-2-RA-TR CAD Model

Alternative Products

Description

The SEAF series connector is a high-density array female type that has 160 positions loaded across 8 rows with a pitch of 0.050 inches (1.27mm).

Number of Positions: 160
Number of Rows: 8
Pitch: 0.050 inches (1.27mm)
Height Above Board: 0.511 inches (12.99mm)
Feature: Board guide
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Temperature Range: -55°C to 125°C
Mounting Type: Surface mounted with a right angle mounting type
Standard Package: 75
Application: Mezzanine (board-to-board)
