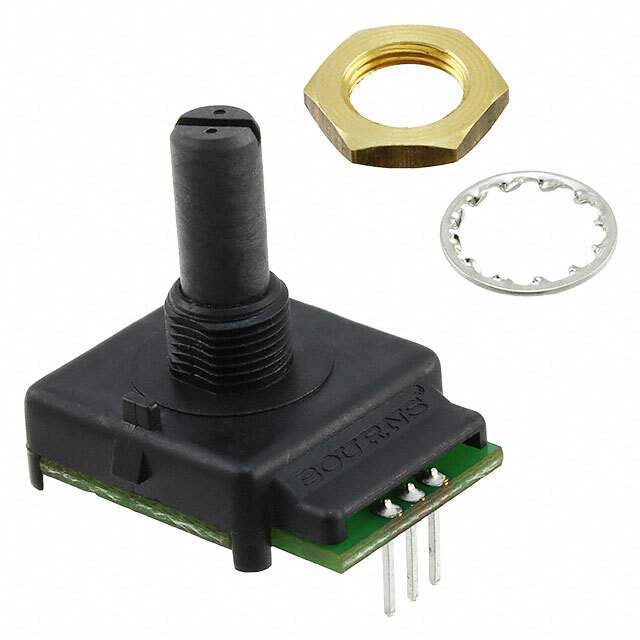

ECW1J-B24-AC0024L Bourns Inc.
Same model may have multiple batches, images only for reference.

ECW1J-B24-AC0024L

Part No ECW1J-B24-AC0024L
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR
Datasheet
ECW1J-B24-AC0024L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307267-ECW1J-B24-AC0024L
Category Sensors, Transducers Encoders
Manufacturer Bourns Inc.
Packaging Bulk
Part Status Active
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 1/4" Dia Slotted End
Detent Yes
Built in Switch No
Ultra Librarian 3D Model Ultra Librarian ECW1J-B24-AC0024L CAD Model

Description

  • Incremental encoder / quadrature output
  • Exceptionally long operating life
  • Sturdy construction
  • Bushing mount
  • Available with PC board mounting bracket (optional)
  • RoHS compliant*
