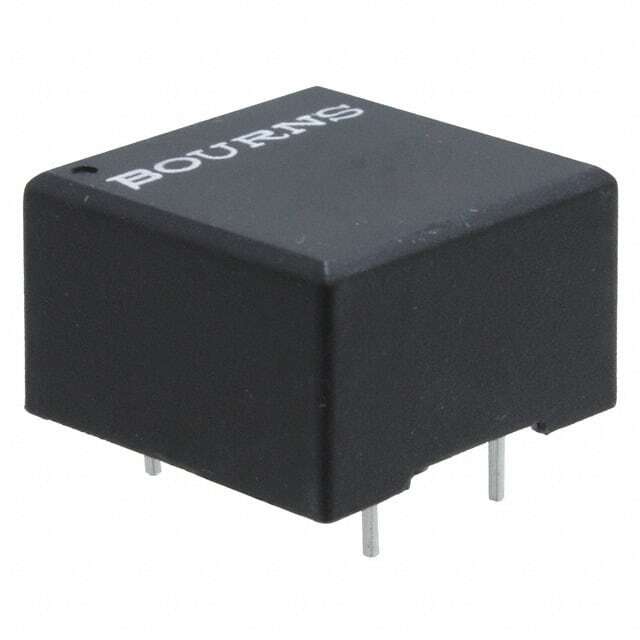

Same model may have multiple batches, images only for reference.
LM-NP-1001-B1L
Same model may have multiple batches, images only for reference.

LM-NP-1001-B1L

Part No LM-NP-1001-B1L
Manufacturer Bourns Inc.
Catalog Specialty Transformers
Description TRANSF LINE MATCHING
Datasheet
LM-NP-1001-B1L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Bourns Inc.
Series LM-NP-1000
Package Tube
Product Status Active
Inductance 2.8 H
Mounting Type Through Hole
Size / Dimension 0.700" L x 0.700" W (17.70mm x 17.70mm)
Height - Seated (Max) 0.504" (12.80mm)
Base Product Number LM-NP
Standard Package 28 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
California Prop 65 Warning Information
Win Source Part Number 848376-LM-NP-1001-B1L
Ultra Librarian 3D Model Ultra Librarian LM-NP-1001-B1L CAD Model

Description

The LM-NP-1001-B1L transformer is a specialty transformer designed for use in electronic circuits from Bourns Inc.

  • Series: LM-NP-1000
  • Package Size: 0.700" L x 0.700" W (17.70mm x 17.70mm)
  • Inductance: 2.8 H
  • Seated Height: 0.504" (12.80mm)
  • Mounting: Through Hole
  • Status: Active
  • Standard Package: 28 pieces
  • REACH: Unaffected
  • ECCN: EAR99
