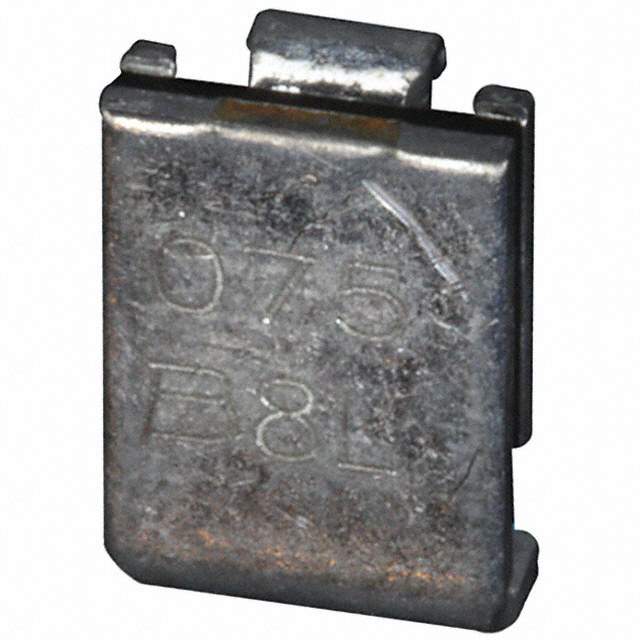

MF-SM125-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SM125-2

Part No MF-SM125-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.25A 15V SMD
Datasheet
MF-SM125-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 1.25A
Current - Trip (It) 2.5A
Time to Trip 2s
Resistance - Initial (Ri) (Min) 70 mOhm
Resistance - Post Trip (R1) (Max) 250 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Thickness (Max) 0.118" (3.00mm)
Approvals cURus, TUV
Win Source Part Number 003442-MF-SM125-2
Ultra Librarian 3D Model Ultra Librarian MF-SM125-2 CAD Model

Description

The Bourns Inc. 003442-MF-SM125-2 is a polymeric circuit protection device that is designed to protect electronic circuits from overcurrent and short circuit faults.

  • Voltage Rating: 15V
  • Maximum Current: 100A
  • Hold Current: 1.25A
  • Trip Current: 2.5A
  • Time to Trip: 2s
  • Thickness: 0.118" (3.00mm)
  • Mounting: SMD (SMT) technology
  • Approval: AEC-Q200 approved
  • Application: suitable for use in automotive applications
  • Packaging: reel - TR packaging
