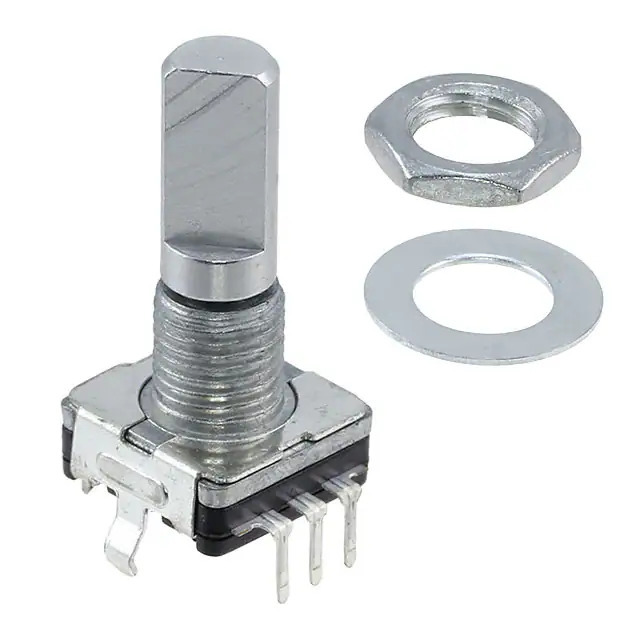

PEC11L-4115F-S0020 Bourns Inc.
Same model may have multiple batches, images only for reference.

PEC11L-4115F-S0020

Part No PEC11L-4115F-S0020
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 20PPR
Datasheet
PEC11L-4115F-S0020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC11
Package Tray
Product Status Active
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 20
Voltage - Supply -
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC11L
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1376097-PEC11L-4115F-S0020
Ultra Librarian 3D Model Ultra Librarian PEC11L-4115F-S0020 CAD Model

Description

The PEC11L-4115F-S0020 is an encoder from Bourns Inc and is part of the PEC11 series designed for use in sensors and transducers.

  • Package: tray
  • Orientation: vertical
  • Actuator: 6mm diameter flatted end
  • Termination Style: PC pin
  • Switch: built-in
  • Output Type: quadrature (incremental)
  • Pulses per Revolution: 20
  • Detent: yes
  • Rotational Life: 100K cycles minimum
  • Product Status: active
  • REACH: compliant
