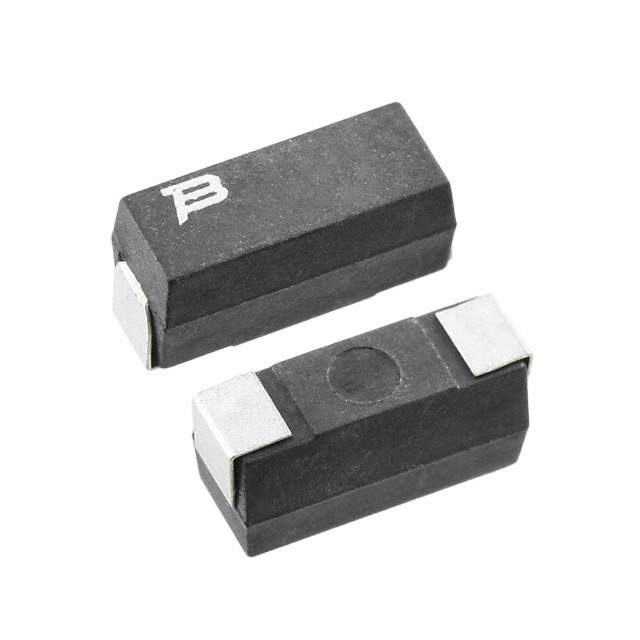

PWR4318W24R0JE

Part No PWR4318W24R0JE
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 24 OHM 5% 2W 4318 / 24 Ohms ±5% 2W Chip Resistor 4318 J-Lead Current Sense, Pulse Withstanding Wirewound
Datasheet
PWR4318W24R0JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series PWR4318
Package Tape & Reel
Resistance 24 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Pulse Withstanding
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 4318 J-Lead
Supplier Device Package 4318
Dimension 0.433" L x 0.177" W (11.00mm x 4.50mm)
Height - Seated (Max) 0.203" (5.16mm)
Number of Terminations 2
Base Product Number PWR4318
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names PWR4318W24R0JETR,PWR4318W24R0JEDKR,PWR4318W24R0JECT
Standard Package 1,500
Win Source Part Number 1186831-PWR4318W24R0JE
Ultra Librarian 3D Model Ultra Librarian PWR4318W24R0JE CAD Model

Description

The Bourns PWR4318 series is a chip resistor - surface mount designed for use in electronic devices.

  • Power Rating: 2W
  • Resistance: 24 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±20ppm/°C
  • Packaging: tape and reel
  • Number of Terminations: 2
  • Size: 4318 J-Lead
  • Operating Temperature Range: -55°C to 155°C
  • RoHS Compliant: true
  • Approval: UL
