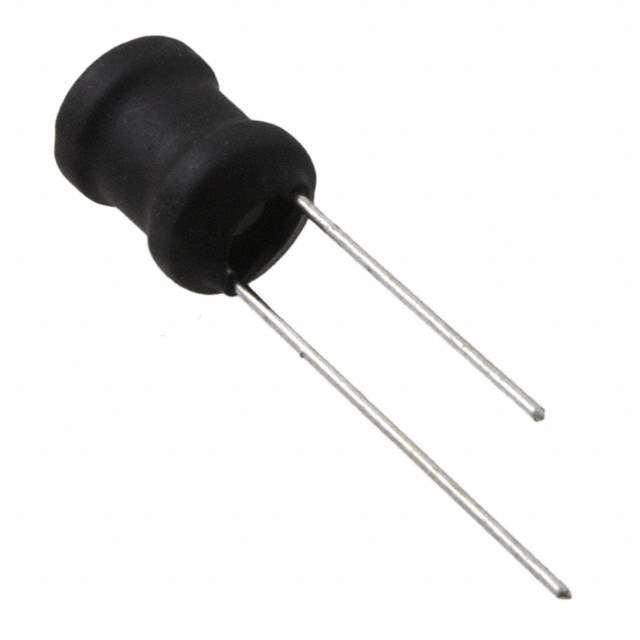

RLB9012-4R7ML Real Image
Same model may have multiple batches, images only for reference.

RLB9012-4R7ML

Part No RLB9012-4R7ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.6A 30 MOHM TH / 4.7 µH Unshielded Drum Core, Wirewound Inductor 4.6 A 30mOhm Max Radial, Vertical Cylinder
Datasheet
RLB9012-4R7ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series RLB9012
Package Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4.6 A
Shielding Unshielded
DC Resistance (DCR) 30mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 51MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Base Product Number RLB9012
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names RLB90124R7ML
Standard Package 200
Win Source Part Number 1088581-RLB9012-4R7ML
Ultra Librarian 3D Model Ultra Librarian RLB9012-4R7ML CAD Model

Description

The RLB9012-4R7ML is a fixed inductor that belongs to the RLB9012 series of inductors.

  • Series: RLB9012
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Type: Drum Core
  • Material: Wirewound
  • Shielding: Unshielded
  • Height: 0.480" (12.20mm)
  • Package: Tray
  • Standard Package: 200
  • Material-Core: Ferrite
  • Q @ Freq: 20 @ 7.96MHz
  • Frequency Self-Resonant: 51MHz
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Vertical Cylinder
  • DC Resistance (DCR): 30mOhm Max
  • Supplier Device Package: Not Specified
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.354" Dia (9.00mm)
  • Manufacturer: Bourns Inc
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Current Rating (Amps): 4.6A
  • Inductance Frequency-Test: 1 kHz
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8504.50.4000
