Same model may have multiple batches, images only for reference.

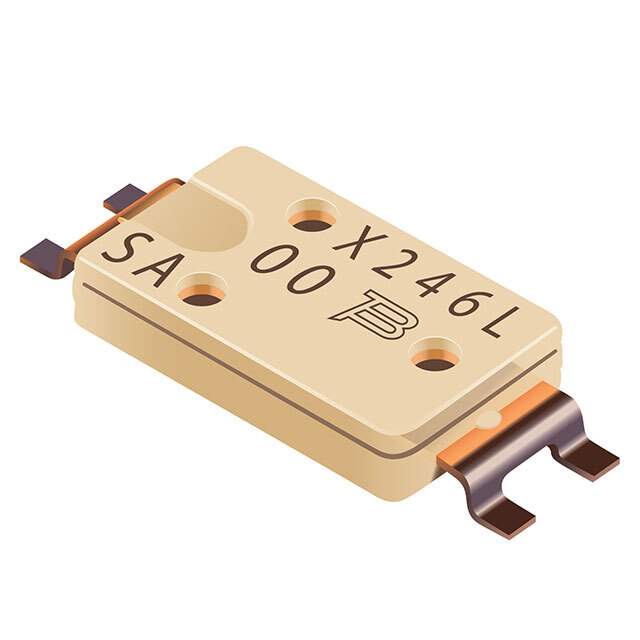

SA85SB0 Real Image
Same model may have multiple batches, images only for reference.

SA85SB0

Part No SA85SB0
Manufacturer Bourns Inc.
Catalog Circuit Breakers
Description THERMOSTAT 85DEG C SPST-NC 4SMD  /  Thermal Cutoff (TCO) AC DC 25 A 85°C (185°F) Nonstandard
Datasheet
SA85SB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SA
Package Tape & Reel
Type Breaker
Rated Functioning Temperature 85°C (185°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard
Base Product Number SA85S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names SA85SB0DKR,SA85SB0CT,SA85SB0TR
Standard Package 5,000
Win Source Part Number 959912-SA85SB0
Ultra Librarian 3D Model Ultra Librarian SA85SB0 CAD Model

Description

The SA85S series from Bourns Inc. is a thermal cutoff (thermal fuses and breakers).

  • Reset Temperature: 40°C (104°F)
  • Rated Functioning Temperature: 85°C (185°F)
  • Voltage Rating: 28
  • Current Rating: 25 A
  • Packaging: Tape & reel
  • Package/Case: Nonstandard
  • Approvals: cUL, TUV, and UL
  • Application: Circuit protection
