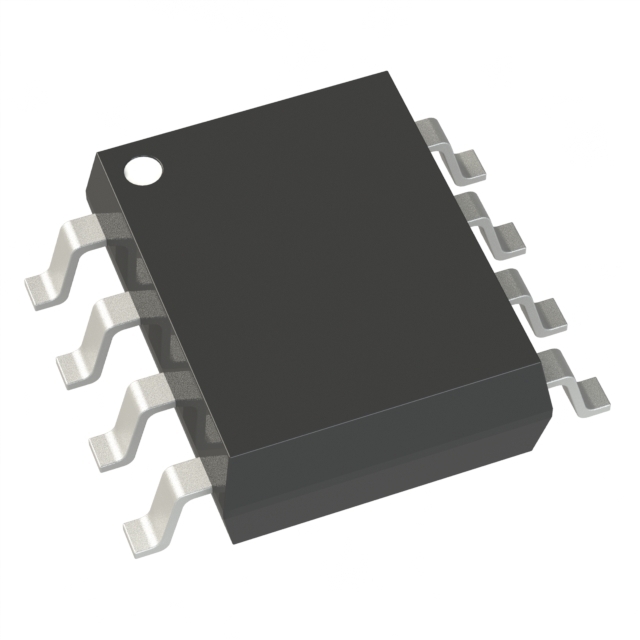

Same model may have multiple batches, images only for reference.
ACHS-7121-000E Broadcom Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACHS-7121-000E

Part No ACHS-7121-000E
Manufacturer Broadcom Limited
Catalog Current Sensors
Description HALL EFFECT IC LF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, TransducersCurrent Sensors
Mfr Broadcom Limited
Packaging Tube
Part Status Active
For Measuring AC/DC
Sensor Type Hall Effect
Current - Sensing 10A
Output Ratiometric, Voltage
Sensitivity 185mV/A
Frequency 80kHz
Linearity ±0.18%
Voltage - Supply 4.5V ~ 5.5V
Response Time 4μs
Current - Supply (Max) 15mA
Operating Temperature -40°C ~ 110°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number ACHS-7121
Ultra Librarian 3D Model Ultra Librarian ACHS-7121-000E CAD Model
