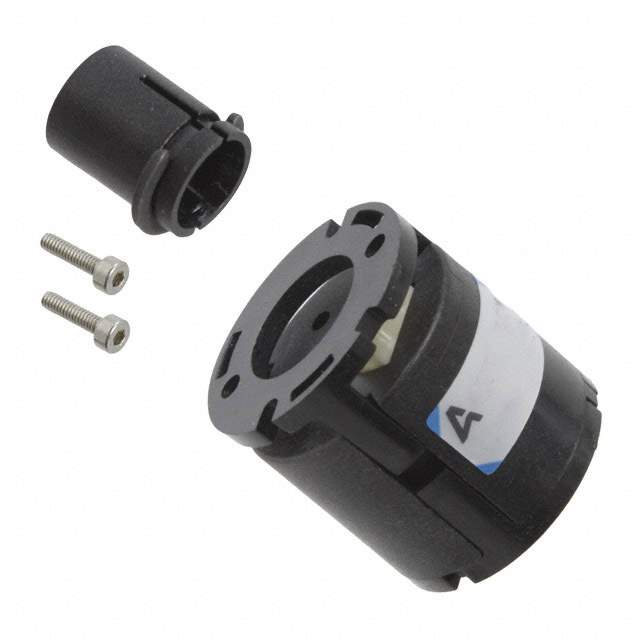

AEAT-6010-A06 Real Image
Same model may have multiple batches, images only for reference.

AEAT-6010-A06

Part No AEAT-6010-A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER MAGNETIC 1024PPR  /  Rotary Encoder Magnetic 1024 Binary (Absolute) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Broadcom Limited
Series AEAT-60xx
Package Bulk
Encoder Type Magnetic
Output Type Binary (Absolute)
Pulses per Revolution 1024
Voltage - Supply 5V
Actuator Type 6mm Dia Round End
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Base Product Number AEAT-6010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names AEAT-6010-A06-ND,AEAT6010A06,516-2635
Standard Package 280
Win Source Part Number 994350-AEAT-6010-A06
Ultra Librarian 3D Model Ultra Librarian AEAT-6010-A06 CAD Model

Description

The AEAT-6010-A06 is a magnetic encoder from Broadcom Limited.

  • Package: Bulk
  • Standard Package: 280
  • Voltage Supply: 5V
  • Output Type: Binary (Absolute)
  • Actuator Type: 6mm dia round end
  • Built-in Switch: No
  • Rotational Life (cycles min): -
  • Detent: No
  • Applications: Various applications that require magnetic sensing
