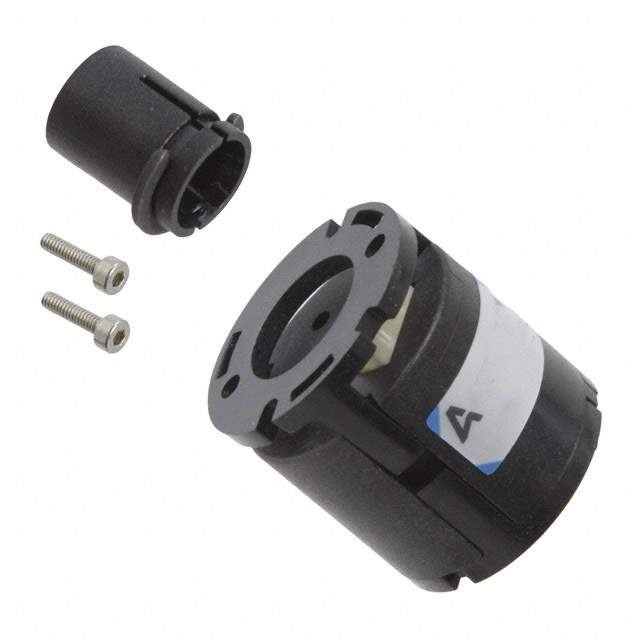

AEAT-6012-A06 Real Image
Same model may have multiple batches, images only for reference.

AEAT-6012-A06

Part No AEAT-6012-A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER MAGNETIC 4096PPR / Rotary Encoder Magnetic 4096 Binary (Absolute) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series AEAT-60xx
Package Bulk
Product Status Obsolete
Encoder Type Magnetic
Output Type Binary (Absolute)
Pulses per Revolution 4096
Voltage - Supply 5V
Actuator Type 6mm Dia Round End
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Base Product Number AEAT-6012
Standard Package 280
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1351300-AEAT-6012-A06
Ultra Librarian 3D Model Ultra Librarian AEAT-6012-A06 CAD Model

Description

The Broadcom Limited AEAT-60xx is a series of magnetic encoders with a binary (absolute) output type.

  • Output Type: Binary (Absolute)
  • Part Number: AEAT-6012-A06
  • Actuator Type: 6mm Dia Round End
  • Orientation: Vertical
  • Pulses per Revolution: 4096
  • Detent: No Detent
  • Mounting: Chassis Mount
  • Package: Bulk
  • Termination Style: Terminal Pins
  • Standard Package: 280
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8543.70.4500
  • Base Product Number: AEAT-6012
  • Status: Obsolete
