Same model may have multiple batches, images only for reference.

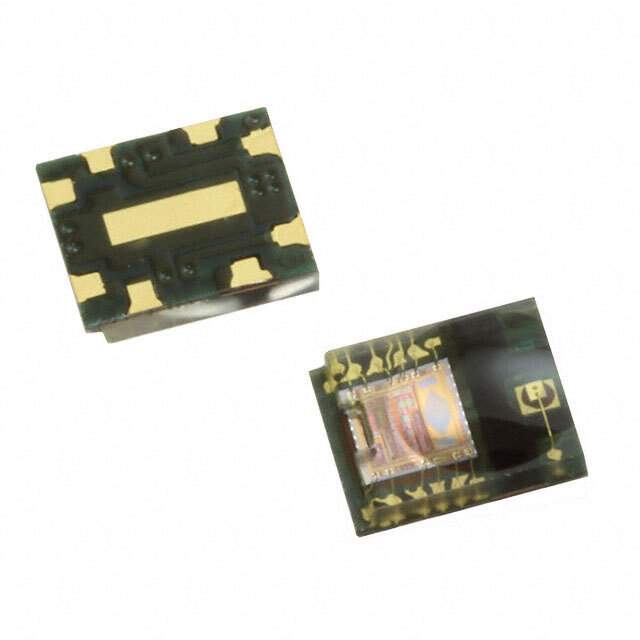

AEDR-8723-102 Real Image
Same model may have multiple batches, images only for reference.

AEDR-8723-102

Part No AEDR-8723-102
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL  /  Rotary Encoder Optical Differential Voltage
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Broadcom Limited
Series AEDR
Package Tape & Reel
Encoder Type Optical
Output Type Differential Voltage
Voltage - Supply 4.5V ~ 5.5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting SMD (SMT)
Termination Style Surface Mount (SMD,SMT)
Base Product Number AEDR-8723
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names AEDR-8723-102-ND,516-3186-6,516-3186-1,516-3186-2
Standard Package 100
Win Source Part Number 979997-AEDR-8723-102
Ultra Librarian 3D Model Ultra Librarian AEDR-8723-102 CAD Model

Description

The Broadcom Limited AEDR-8723-102 is an electronic component in the sensors and transducers category.

  • Termination Style: Surface Mount (SMD, SMT)
  • Package Type: Tape and Reel
  • Output Type: Differential Voltage
  • Encoder Type: Optical
  • Voltage Supply: 4.5V to 5.5V
  • ECCN: EAR99 compliant
  • Manufacturer: Broadcom Limited
