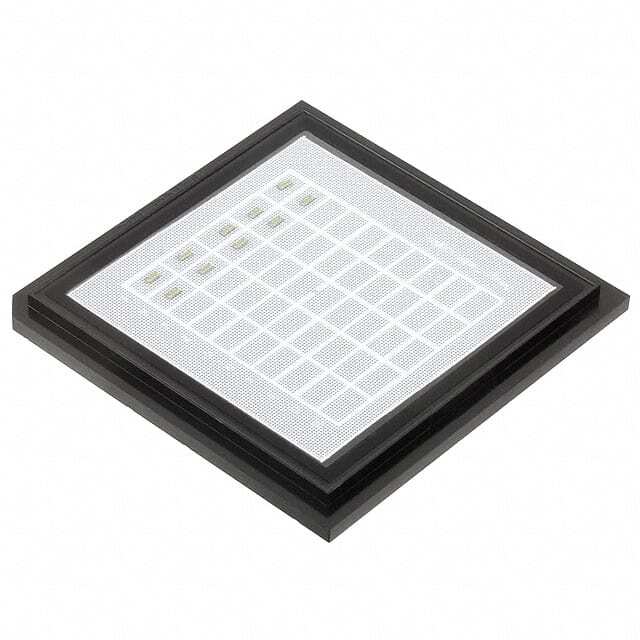

Same model may have multiple batches, images only for reference.
AMMC-6241-W10
Same model may have multiple batches, images only for reference.

AMMC-6241-W10

Part No AMMC-6241-W10
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC RF AMP VSAT 26GHZ-43GHZ MOD / RF Amplifier IC VSAT 26GHz ~ 43GHz Module
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Broadcom Limited
Package Tray
Product Status Obsolete
Frequency 26GHz ~ 43GHz
P1dB 10dBm
Gain 21dB
Noise Figure 3dB
RF Type VSAT
Voltage - Supply 3V
Current - Supply 60mA
Test Frequency 37GHz ~ 40GHz
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number AMMC-6241
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN MMIC 3A001B2D
HTSUS 8542.33.0001
Win Source Part Number 911402-AMMC-6241-W10
Ultra Librarian 3D Model Ultra Librarian AMMC-6241-W10 CAD Model

Description

The AMMC-6241-W10 is a RF Amplifier designed for VSAT applications from Broadcom Limited.

  • Frequency Range: 26GHz to 43GHz
  • Test Frequency: 37GHz to 40GHz
  • Gain: 21dB
  • Noise Figure: 3dB
  • Current Supply: 60mA
  • Voltage Supply: 3V
  • Package Type: Module
  • Mounting: Surface Mounted
  • Series: AMMC-6241
  • Packaging: Tray
  • Standard Package: 10 pcs
  • ECCN: MMIC 3A001B2D
  • REACH: Unaffected
  • P1dB: 10dBm
  • Product Status: Obsolete
