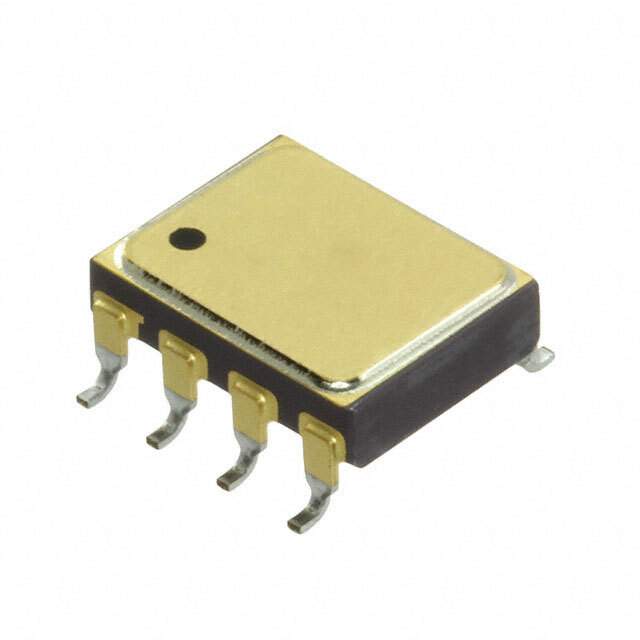

The HCPL-563K-300 is a logic output optocoupler from Broadcom Limited that provides galvanic isolation between the input and output.

• Package: 8-CSMD, Gull Wing
• Data Rate: 10MBd
• Output Type: Open Collector, Schottky Clamped
• Input Type: DC
• Current - DC Forward (If) (Max): 20mA
• Voltage - Forward (Vf) (Typ): 1.5V
• Rise / Fall Time (Typ): 35ns, 35ns
• Current - Output / Channel: 25 mA
• Voltage - Isolation: 1500VDC
• Inputs per Side: 2 (Side 1), 0 (Side 2)
• Common Mode Transient Immunity (Min): 1kV/μs
• Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
• Voltage - Supply: 4.5V ~ 5.5V
• Operating Temperature: -55°C ~ 125°C
