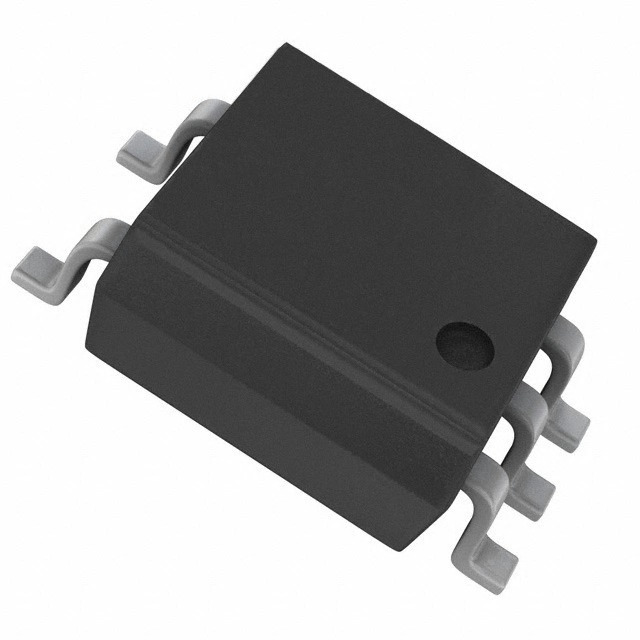

The Broadcom Limited 1179175-HCPL-M456 is an electronic component that belongs to the isolators category.

• Supply and demand status: The supply and demand status of this component is balanced.
• Manufacturer: It is manufactured by Broadcom Limited and has a Win Source Part Number of 1179175-HCPL-M456.
• Packaging: This component has a packaging type of tube and a mounting style of SMD.
• Output Type: It has an output type of open collector, Schottky clamped and an input type of DC.
• Current Output: The current output per channel is 15mA and the voltage isolation is 3750Vrms.
• Inputs: The inputs on side 1 and side 2 are 1 and 0, respectively.
• Supplier Device Package: The supplier device package is 5-SO and the temperature range for operating is -40°C to 100°C.
• Manufacturer Homepage: The manufacturer homepage is www.home.agilent.com and the manufacturer package is 6-SOIC, 5 leads.
• DC Forward Current: The current DC forward (If) (Maximum) is 25mA and the common mode transient immunity (minimum) is 15kV/μs.
• Propagation Delay: The propagation delay tpLH / tpHL (maximum) is 550ns and 400ns.
• Supply Voltage: The supply voltage (V) is 4.5V to 30V and the voltage forward (Vf) is 1.5V.
