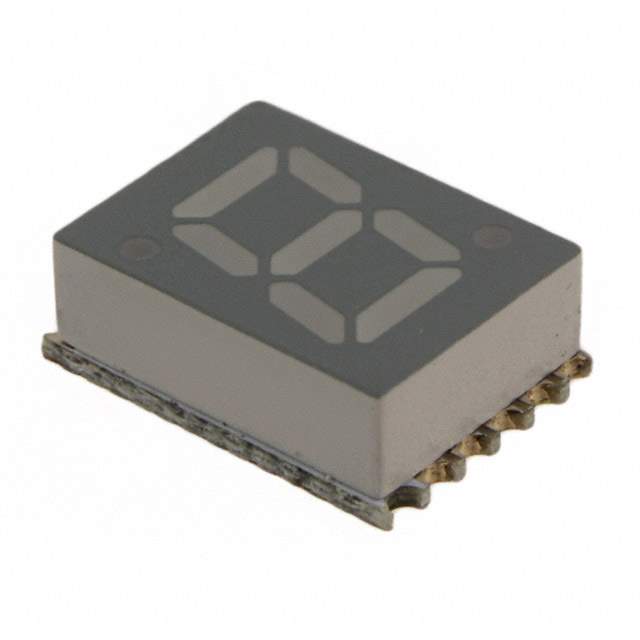

HDSM-281H Real Image
Same model may have multiple batches, images only for reference.

HDSM-281H

Part No HDSM-281H
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.28" SGL GRN 12SMD / Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.1V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Datasheet
HDSM-281H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Package Tape & Reel
Number of Characters 1
Dimension 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 6mcd
Wavelength - Peak 572nm
Power Dissipation (Max) 65mW
Package / Case 12-SMD, No Lead, 11 Pads
Base Product Number HDSM-281
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names HDSM-281H-ND,516-4068-6,516-4068-2,516-4068-1
Standard Package 1,000
Win Source Part Number 1143361-HDSM-281H
Ultra Librarian 3D Model Ultra Librarian HDSM-281H CAD Model

Description

HDSM-281H is a green LED character and numeric display module.

  • Millicandela Rating: 6mcd
  • Forward Voltage: 2.1V
  • Package: 12-SMD, No Lead, 11 Pads
  • Dimension: 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
  • Status: Obsolete
  • Alternative Part: HDSM281H
  • ECCN: EAR99
  • REACH Affected: No
