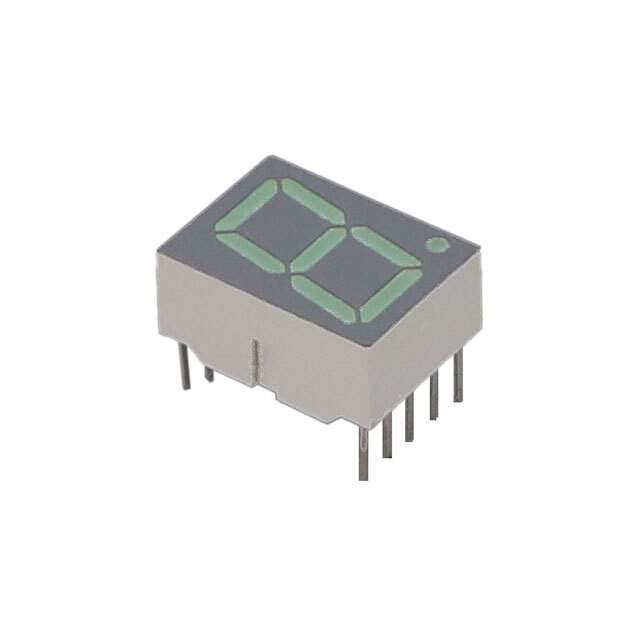

HDSP-5601-GH000 Real Image
Same model may have multiple batches, images only for reference.

HDSP-5601-GH000

Part No HDSP-5601-GH000
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG GREEN CA 0.56"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Number of Characters 1
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Forward Voltage 2.1V
Current - Test 10mA
Millicandela Rating 2.5mcd
Wavelength - Peak 566nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.600", 15.24mm)
Win Source Part Number 088525-HDSP-5601-GH000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 320
Ultra Librarian 3D Model Ultra Librarian HDSP-5601-GH000 CAD Model

Description

The Broadcom Limited HDSP-5601-GH000 is a green colored 7-segment display with a digit/alpha size of 0.56" (14.22mm). It has a forward voltage of 2.1V and a millicandela rating of 2.5mcd. The display has a wavelength peak of 566nm and a power dissipation (max) of 105mW. It is available in 10-DIP (0.600", 15.24mm) packaging and has a common anode. The supply and demand status for this display is limited and it has a quantity of 320 per package.
