Same model may have multiple batches, images only for reference.

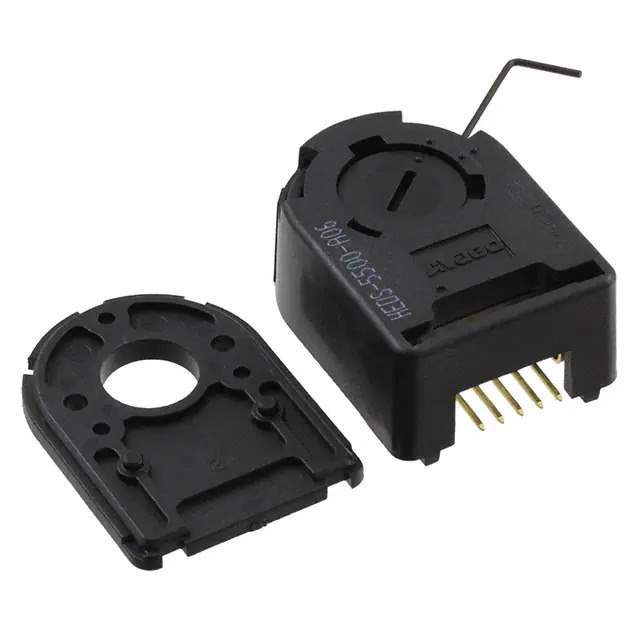

HEDS-5500#A06 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5500#A06

Part No HEDS-5500#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR / Rotary Encoder Optical 500 Quadrature (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series HEDS
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDS-5500
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920143-HEDS-5500#A06
Ultra Librarian 3D Model Ultra Librarian HEDS-5500#A06 CAD Model

Description

The HEDS-5500#A06 is an optical encoder designed for sensors and transducers applications.

  • Series: HEDS
  • Manufacturer: Broadcom Limited
  • Package: bulk
  • Orientation: vertical
  • Output Type: quadrature
  • Actuator Type: 1/4" Open Center
  • Programmability: not verified
  • Built-in Switch: no
  • Pulses per Revolution: 500
  • Detent Feature: no detent feature
  • Voltage Supply: 5V
  • Mounting: chassis mount or motors
  • Status: active product
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (unlimited)
  • REACH: unaffected
