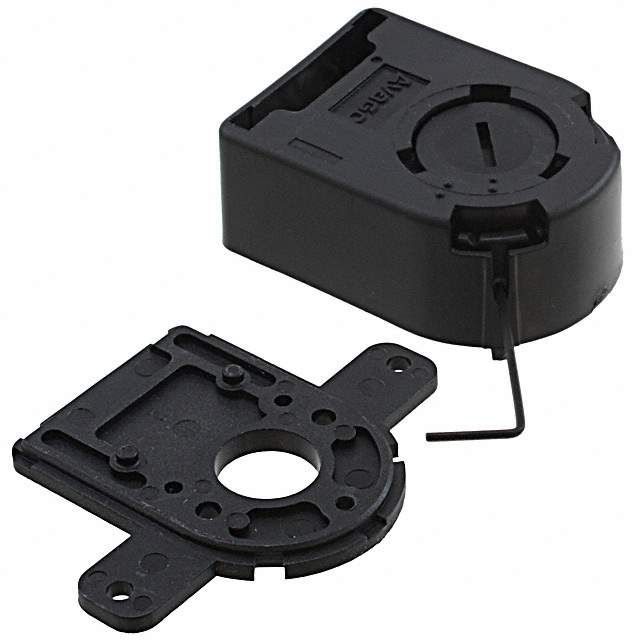

HEDS-5600#E06 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5600#E06

Part No HEDS-5600#E06
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 2CH 200CPR 1/4" / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 200CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 200
Operating Supply Voltage 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775872-HEDS-5600#E06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5600
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5600#E06 CAD Model

Description

The Broadcom Limited 775872-HEDS-5600#E06 is an optical encoder designed by Broadcom Limited for use in motors and chassis mount applications.

  • Output Type: Quadrature (incremental)
  • Operating Supply Voltage: 5V
  • Actuator Type: 1/4" open center
  • Pulses Per Revolution: 200
  • Detent: No
  • Built-in Switch: No
  • Series: HEDS
  • Mounting: Terminal pins
  • Orientation: Vertical
  • Package Quantity: 50
  • Introduction Date: May 31, 2005
  • Halogen-Free: No
  • Popularity: Medium
  • Estimated EOL Date: 2027
