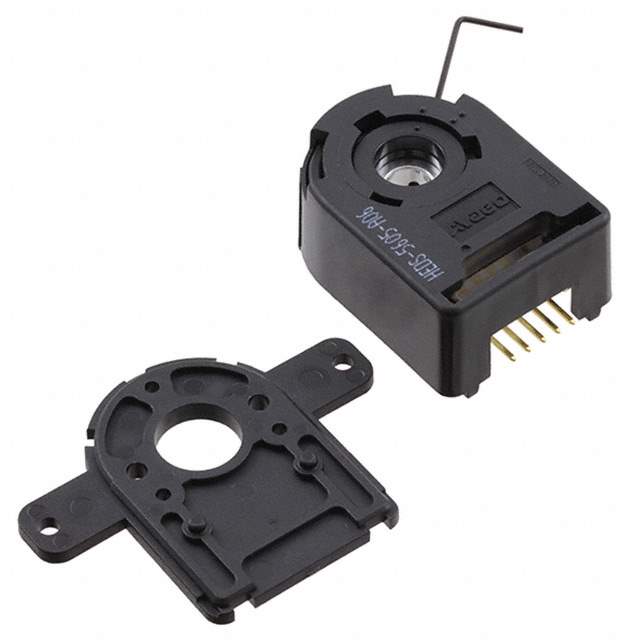

HEDS-5605#A06 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5605#A06

Part No HEDS-5605#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPT 2CH QUICK ASSM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775873-HEDS-5605#A06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5605
Introduction Date May 31, 2005
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5605#A06 CAD Model

Description

The Broadcom Limited 775873-HEDS-5605#A06 is an optical encoder type electronic component from Broadcom Limited that is part of the HEDS series.

  • Orientation: Vertical
  • Termination Style: Terminal pins
  • Suitable for use in: Chassis mount and motors
  • Output Type: Quadrature (incremental)
  • Operating Supply Voltage: 5V
  • Actuator Type: 1/4" open center
  • Built-in Switch: No
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
  • Suitable for use in: Various electronic devices and equipment
