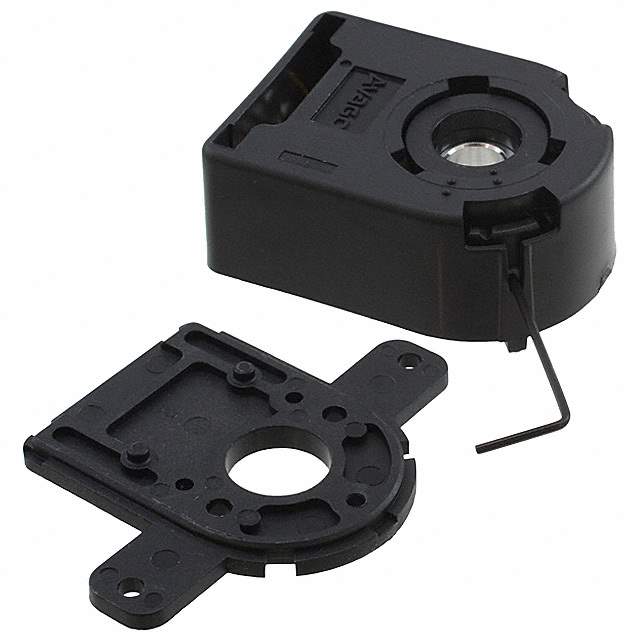

HEDS-5645#H06

Part No HEDS-5645#H06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 400PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 400
Supply Voltage (V) 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Style Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810866-HEDS-5645#H06
Ultra Librarian 3D Model Ultra Librarian HEDS-5645#H06 CAD Model

Description

The Broadcom Limited HEDS-5645#H06 is an electronic component.

  • Termination Style: Terminal Pins
  • Mounting Style: Chassis Mount, Motors
  • Orientation: Vertical
  • Output Type: Quadrature with Index (Incremental)
  • Actuator Type: 1/4" Open Center
  • Switch: No Built-in Switch
  • Encoder Type: Optical
  • Pulses per Revolution: 400
  • Detent: No
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Supply Voltage: 5V
