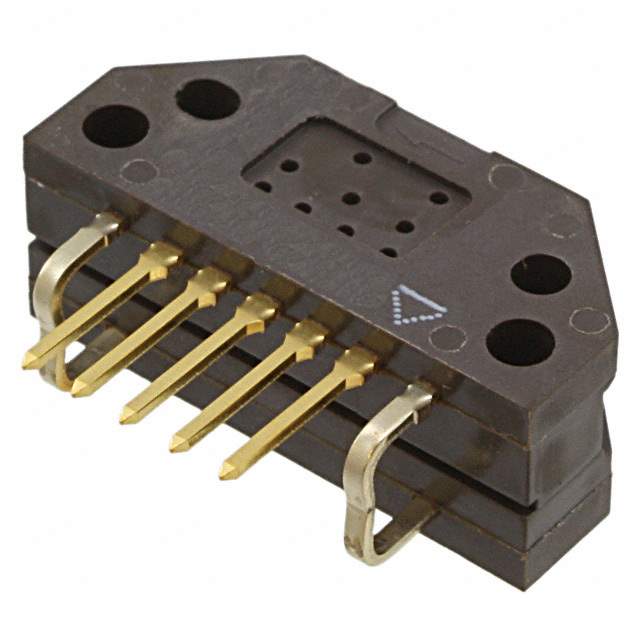

HEDS-9140#G00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9140#G00

Part No HEDS-9140#G00
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 360PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 360
Supply Voltage (V) 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Style Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 723812-HEDS-9140#G00
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HEDS-9140#G00 CAD Model

Description

The Broadcom Limited 723812-HEDS-9140#G00 is an electronic component categorized under sensors and transducers.

  • Manufacturer: Broadcom Limited
  • Mounting: Vertical Chassis Mount
  • Termination Style: Terminal Pins
  • Output Type: Quadrature with Index (Incremental)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
  • Supply Voltage: 5V
