Part No HEDS-9730#A54
Manufacturer Broadcom Limited
Catalog Encoders

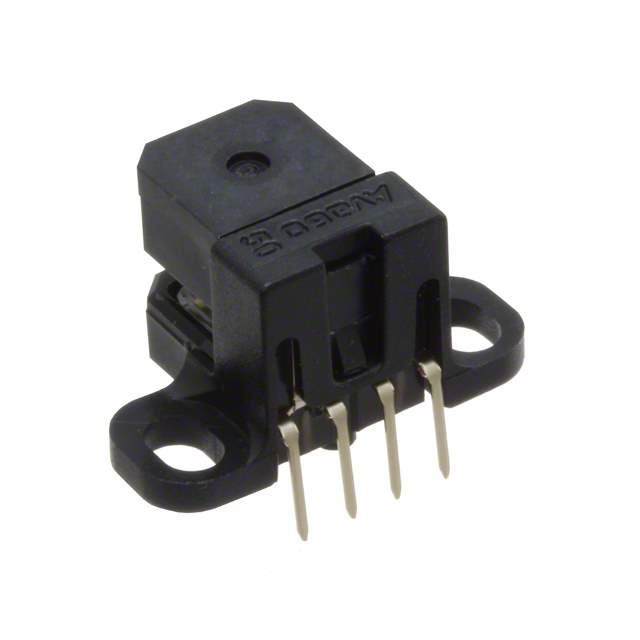

Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Supply Voltage (V) 2.8V ~ 5.2V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Style Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 718494-HEDS-9730#A54
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HEDS-9730#A54 CAD Model

Description

The 718494-HEDS-9730#A54 from Broadcom Limited is an incremental optical encoder.

  • Output Type: Quadrature
  • Mounting Style: Chassis Mount
  • Orientation: Vertical
  • Switch: No built-in switch
  • Pulses per Revolution: 500
  • Termination Style: Terminal Pins
  • Encoder Type: Optical
  • Supply Voltage: 2.8V ~ 5.2V
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1
