Same model may have multiple batches, images only for reference.

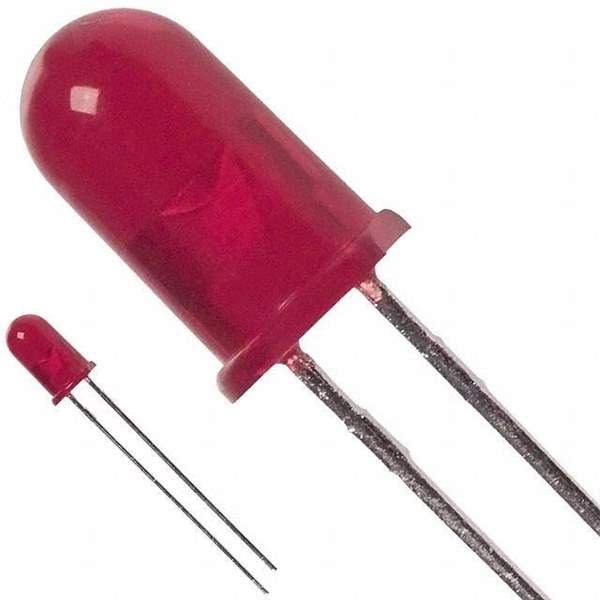

HLMP-3762 Real Image
Same model may have multiple batches, images only for reference.

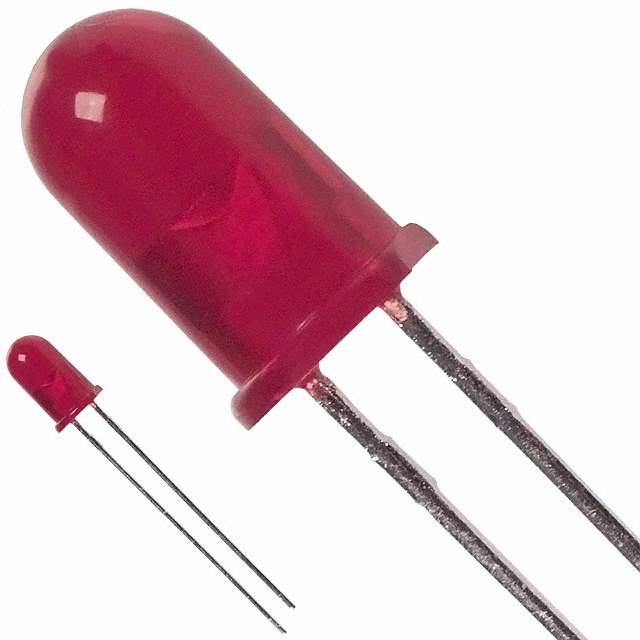

HLMP-3762

Part No HLMP-3762
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFF 5MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 8.6mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 4.83mm
Forward Voltage 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 3/4
Height (Max) 9.19mm
Win Source Part Number 274767-HLMP-3762
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-3762 CAD Model

Description

The Broadcom Limited 274767-HLMP-3762 is an optoelectronic component with a forward voltage of 1.9V and a viewing angle of 60°.

  • Current-Test: 10mA
  • Millicandela Rating: 8.6mcd
  • Package: 2k pcs
