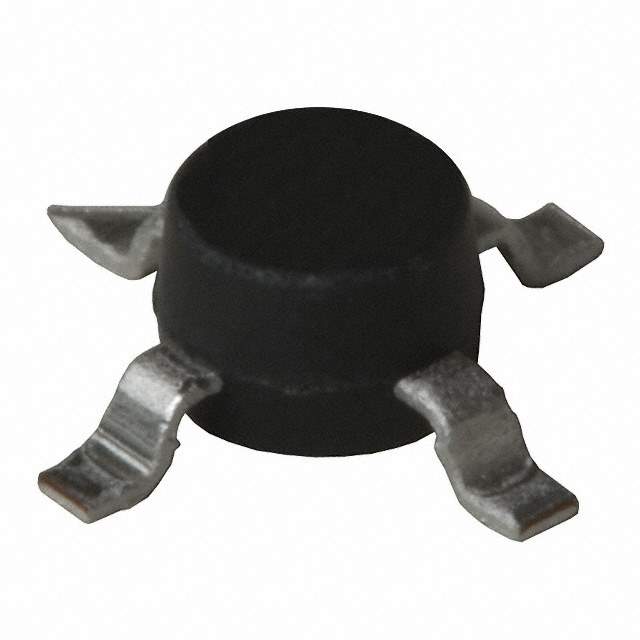

The MSA-0886-TR1G is a high-performance Silicon Bipolar MMIC (Monolithic Microwave Integrated Circuit) amplifier manufactured by Broadcom Limited. It's designed for applications requiring low noise and high gain at microwave frequencies. This amplifier is suitable for use in various communication and instrumentation systems.

Applications

• LNA (Low Noise Amplifier) applications
• Buffer amplifier stages
• Oscillator drivers
• IF amplifiers
• RF receiver front-ends
• Wireless communication systems

Features

• High gain
• Low noise figure
• Internally matched to 50 ohms
• Surface mount package
• Unconditionally stable

Benefits

• Improves receiver sensitivity due to its low noise figure.
• Simplifies circuit design with its internal matching.
• Reduces board space due to its small surface mount package.
• Enhances system performance with its high gain.
• Easy integration into various RF and microwave circuits.

Additional Details

The MSA-0886-TR1G offers a typical gain of around 14 dB and a noise figure of around 2.7 dB at 1 GHz. The internal matching simplifies the design process by eliminating the need for external matching components. It operates from a single positive supply voltage, typically around 4.5V, and draws a small amount of current. The device is packaged in a small outline transistor (SOT) package suitable for surface mounting. The amplifier is designed to be unconditionally stable, meaning it will not oscillate under any load conditions. The operating frequency range extends from near DC to several GHz, making it suitable for a wide range of applications.
