Same model may have multiple batches, images only for reference.

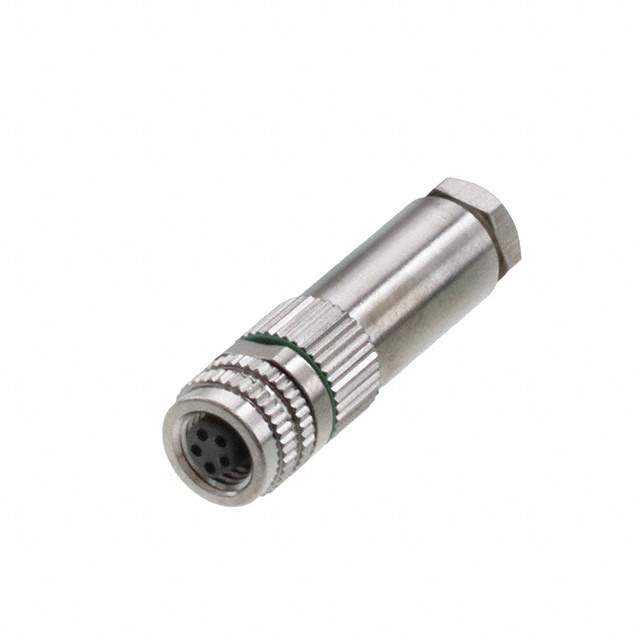

PXMBNI08FBF05BSC Real Image
Same model may have multiple batches, images only for reference.

PXMBNI08FBF05BSC

Part No PXMBNI08FBF05BSC
Manufacturer Bulgin
Catalog Circular Connectors
Description CONN PLUG FMALE 5POS SOLDER CUP  /  5 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
PXMBNI08FBF05BSC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Bulgin
Series Buccaneer® M8
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 5
Shell Size - Insert M8-5
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation B
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Coupling Nut
Current Rating (Amps) 1.5A
Voltage Rating 30V
Cable Opening 0.118" ~ 0.138" (3.00mm ~ 3.50mm)
Temperature Range - Operating -25°C ~ 80°C
Backshell Material, Plating Brass, Nickel
Contact Material Phosphor Bronze
Applications Industrial
Base Product Number PXMBNI
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 2266-PXMBNI08FBF05BSC,708-2134
Standard Package 25
Win Source Part Number 1148032-PXMBNI08FBF05BSC
Ultra Librarian 3D Model Ultra Librarian PXMBNI08FBF05BSC CAD Model

Description

The Bulgin Buccaneer® M8 1148032-PXMBNI08FBF05BSC is a 5-position circular connector manufactured by Bulgin.

  • Positions: 5
  • Color: Silver
  • Features: Backshell, Coupling Nut
  • Connector Type: Plug with Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Voltage Rating: 30V
  • Ingress Protection: IP67
  • Contact Material: Phosphor Bronze
  • Current Rating: 1.5A
  • Operating Temperature: -25°C to 80°C
  • Shell Material: Brass
  • Shell Finish: Nickel
  • Application: Industrial
