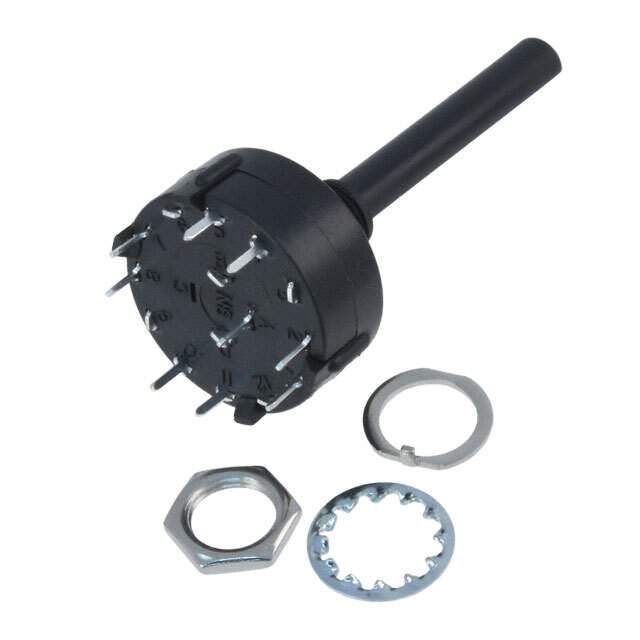

A12515RNCQ Real Image
Same model may have multiple batches, images only for reference.

A12515RNCQ

Part No A12515RNCQ
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 8POS 2.5A 125V  /  Rotary Switch 8 Position SP8T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount, Through Hole
Datasheet
A12515RNCQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series A
Package Tray
Number of Positions 8
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP8T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 38.10mm
Angle of Throw 45°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 14.48mm
Panel Cutout Dimensions Circular - 9.80mm Dia
Base Product Number A12515RN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names 2266-A12515RNCQ,*A12515RNCQ,CKN10205,A12515RNCQ-ND
Standard Package 36
Win Source Part Number 1177794-A12515RNCQ
Ultra Librarian 3D Model Ultra Librarian A12515RNCQ CAD Model

Description

The A12515RNCQ is a rotary switch from C&K.

  • Switch Type: Rotary
  • Switching Function: Non-Shorting (BBM)
  • Actuator Type: Flatted (6.35mm Dia)
  • Positions: 8
  • Contact Material: Silver (Ag)
  • Contact Finish: Silver
  • Voltage Rating (AC): 125 V
  • Voltage Rating (DC): 125 V
  • Standard Package: 36
  • Mounting: Panel Mounted
  • Panel Cutout: 9.80mm Dia (Circular)
  • Decks: Single
  • Circuit per Deck: SP8T
  • Poles per Deck: Single
  • Angle of Throw: 45 Degrees
  • Depth Behind Panel: 14.48mm
  • Current Rating (AC): 2.5A (AC)
  • Current Rating (DC): 350mA (DC)
  • REACH: Unaffected
