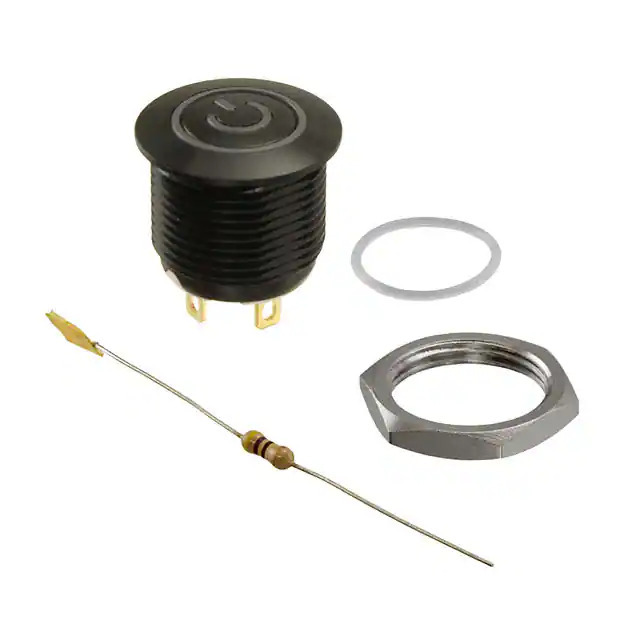

ATP16-DL5-606-B3SA-04G C&K Components
Same model may have multiple batches, images only for reference.

ATP16-DL5-606-B3SA-04G

Part No ATP16-DL5-606-B3SA-04G
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH ANTIVANDAL 16MM DOME RING
Datasheet
ATP16-DL5-606-B3SA-04G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series ATP16
Package Tray
Product Status Active
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 2A (DC)
Voltage Rating - DC 36 V
Actuator Type Round, Button, Domed
Actuator Marking Power Symbol
Color - Actuator/Cap Black
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 6 VDC
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 1,000,000 Cycles
Electrical Life 200,000 Cycles
Base Product Number ATP16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376057-ATP16-DL5-606-B3SA-04G
Ultra Librarian 3D Model Ultra Librarian ATP16-DL5-606-B3SA-04G CAD Model

Description

The ATP16-DL5-606-B3SA-04G is an anti-vandal illuminated pushbutton switch from C&K.

  • Mounting Type: Panel Mount
  • Actuator Type: Front
  • Voltage Rating: 36V DC
  • Current Rating: 2A DC
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Shape: Round, Button-Shaped, Domed
  • Actuator Color: Black
  • Marking: Power Symbol
  • Illumination: Green LED @ 6VDC
  • Termination Style: Solder Lug
  • Panel Cutout: 16.00mm diameter
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
