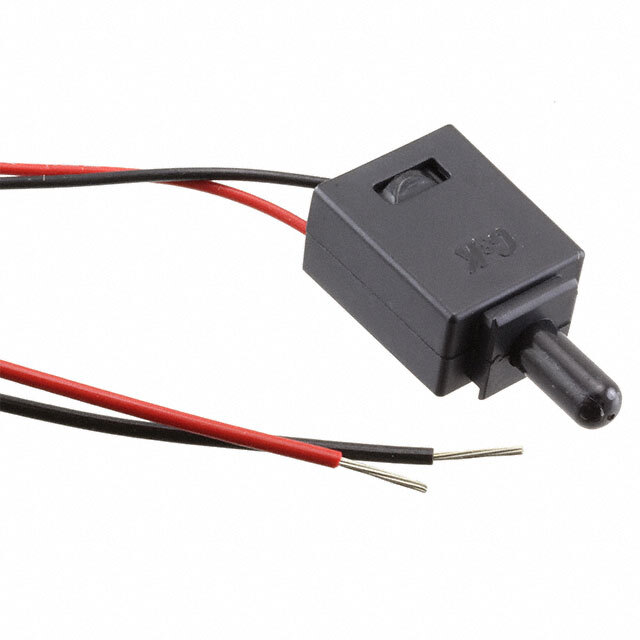

Same model may have multiple batches, images only for reference.
KDS11 C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KDS11

Part No KDS11
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Series KDS
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Overtravel Plunger
Mounting Type Chassis Mount
Termination Style Wire Leads
Pretravel 0.180" (4.6mm)
Overtravel 0.224" (5.7mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 10,000 Cycles
Mechanical Life 10,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1477599-KDS11
Ultra Librarian 3D Model Ultra Librarian KDS11 CAD Model
