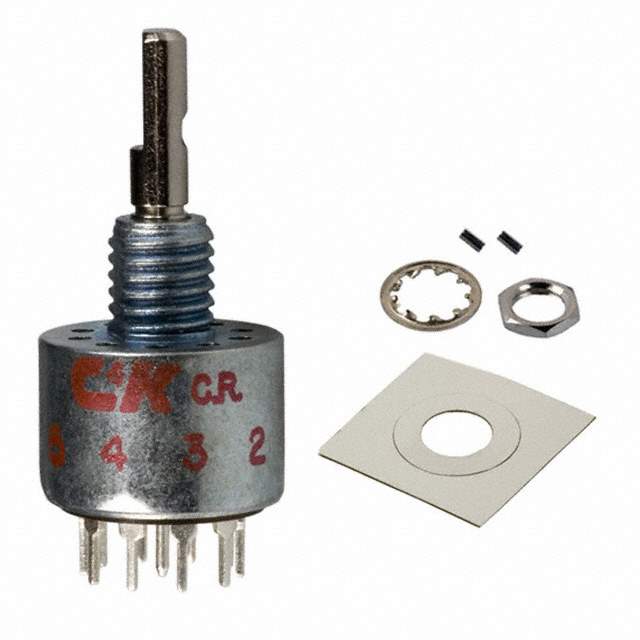

MA00L1NCQD Real Image
Same model may have multiple batches, images only for reference.

MA00L1NCQD

Part No MA00L1NCQD
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 10POS 250MA 125V / Rotary Switch 10 Position SP10T 250mA (AC/DC) 125 VAC Panel Mount, Through Hole
Datasheet
MA00L1NCQD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr C&K
Series M
Package Tray
Number of Positions 10
Index Stops Continuous
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP10T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 10.16mm
Angle of Throw 36°
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 10.42mm
Panel Cutout Dimensions Circular - 6.60mm Dia
Base Product Number MA00L1N
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9025
Win Source Part Number 1340113-MA00L1NCQD
Ultra Librarian 3D Model Ultra Librarian MA00L1NCQD CAD Model

Description

The MA00L1NCQD is a rotary switch from C&K Components. This switch is a single pole, ten throw (SP10T) circuit and has a flatted (3.17mm dia) actuator type.

  • Circuit: SP10T
  • Actuator Type: Flatted (3.17mm Dia)
  • Panel Cutout Dimensions: Circular - 6.60mm Dia
  • Number of Positions: 10
  • Index Stops: Continuous
  • Number of Decks: 1
  • Number of Poles per Deck: 1
  • Circuit per Deck: SP10T
  • Throw Angle: 36°
  • Voltage Rating - AC: 125VAC
  • Voltage Rating - DC: 28VDC
  • Termination Style: PC Pin
  • Contact Finish: Silver
  • Packaging: Tray
  • Standard Package: 80
  • Mechanical Life: 250mA (AC/DC)
  • Electrical Life: 250mA (AC/DC)
  • RoHS Status: Compliant
  • REACH: Unaffected
