Same model may have multiple batches, images only for reference.

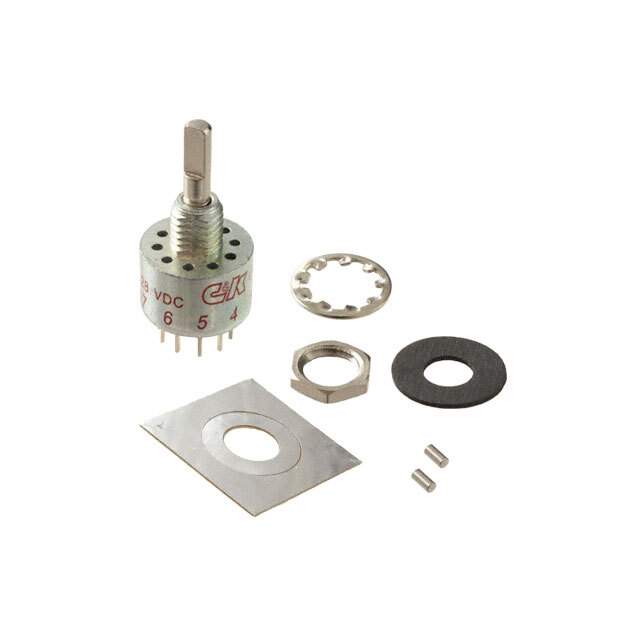

MA00L1NCQF Real Image
Same model may have multiple batches, images only for reference.

MA00L1NCQF

Part No MA00L1NCQF
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 10POS 250MA 125V / Rotary Switch 10 Position SP10T 250mA (AC/DC) 125 VAC Panel Mount, Through Hole
Datasheet
MA00L1NCQF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr C&K
Series M
Package Tray
Number of Positions 10
Index Stops Continuous
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP10T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 10.16mm
Angle of Throw 36°
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features IP67 - Dust Tight, Waterproof
Depth Behind Panel 10.42mm
Panel Cutout Dimensions Circular - 6.60mm Dia
Base Product Number MA00L1N
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1339701-MA00L1NCQF
Ultra Librarian 3D Model Ultra Librarian MA00L1NCQF CAD Model

Description

The M series rotary switch from C&K is a high-quality switch that features IP67 dust tight and waterproof capabilities.

  • IP Rating: IP67
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Voltage Rating: 125 V AC and 28 V DC
  • Current Rating: 250mA (AC/DC)
  • Contact Timing: Non-Shorting (BBM)
  • Actuator Type: Flatted (3.17mm Dia)
  • Actuator Length: 10.16mm
  • Positions: 10
  • Circuit per Deck: SP10T
  • Angle of Throw: 36°
  • Index Stops: Continuous
  • Panel Cutout Dimensions: 6.60mm Diameter
  • Mounting Type: Panel, Through Hole
  • Package: Tray
