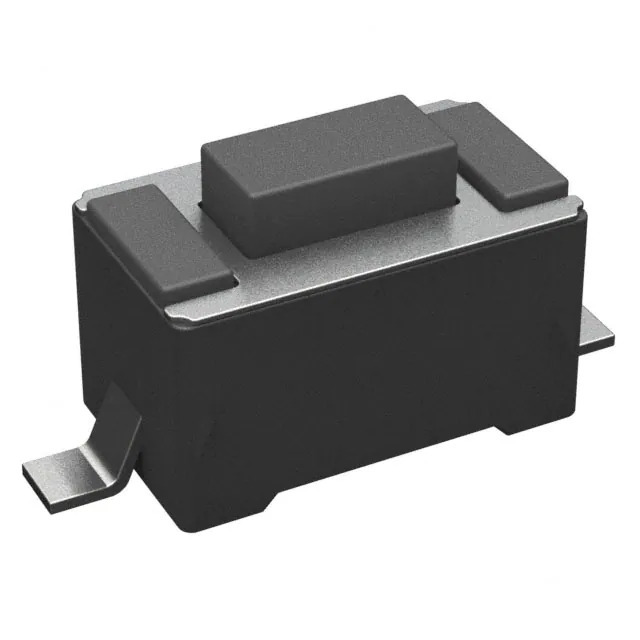

Same model may have multiple batches, images only for reference.

PTS636 SM50 SMTR LFS

Name: PTS636 SM50 SMTR LFS
Brand: C&K Components
SKU: 1376546
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTS636 SM50 SMTR LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	TACT 6.0 X 3.5, 5.0 MM H, 180GF, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	PTS636 SM50 SMTR LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS636
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	5.00mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 3.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	180gf
Ingress Protection	IP40
Features	-
Temperature Range - Operating	-40°C ~ 90°C
Actuator Material	-
Switch Travel	0.30mm
Mechanical Life	50,000 Cycles
Base Product Number	PTS636
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376546-PTS636 SM50 SMTR LFS
Ultra Librarian 3D Model	Ultra Librarian PTS636 SM50 SMTR LFS CAD Model

Alternative Products

Description

The PTS636 SM50 SMTR LFS is a tactile switch from the PTS636 series manufactured by C&K.

Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 90°C
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Rectangular Button
Termination Style: Gull Wing
Mechanical Life: 50,000 Cycles
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Height off PCB: 5.00mm
Outline: 6.00mm x 3.50mm
Illumination: Non-Illuminated
Operating Force: 180gf
