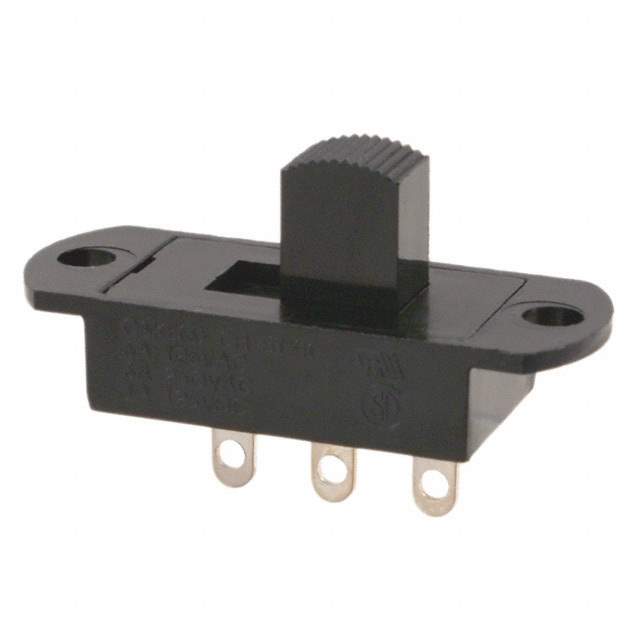

S112032SS03Q Real Image
Same model may have multiple batches, images only for reference.

S112032SS03Q

Part No S112032SS03Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 6A 125V  /  Slide Switch SPDT Panel Mount
Datasheet
S112032SS03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-Mom
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S112032
Other Names *S112032SS03Q,CKN9890
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233157-S112032SS03Q
Ultra Librarian 3D Model Ultra Librarian S112032SS03Q CAD Model

Description

The S112032SS03Q is a panel-mounted slide switch with a SPDT circuit and an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Termination Style: Solder Lug
  • Package: Bulk
  • Contact Finish: Silver
  • Contact Material: Copper
  • Voltage Rating: 125V AC and DC
  • Current Rating: 6A AC and 1A DC
