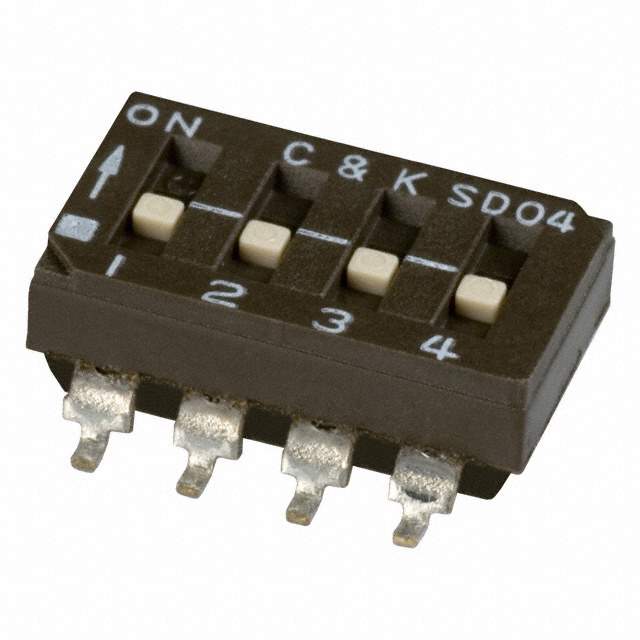

SD04H0SB1R Real Image
Same model may have multiple batches, images only for reference.

SD04H0SB1R

Part No SD04H0SB1R
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V  /  Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD04H0SB1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tape & Reel (TR)
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.458" (11.63mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD04H0
Other Names -SD04H0SB1R
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233841-SD04H0SB1R
Ultra Librarian 3D Model Ultra Librarian SD04H0SB1R CAD Model

Description

The SD series DIP switch from C&K is a 4-position switch with a pitch of 0.100" (2.54mm), full.

  • Positions Number: 4
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: gull wing
  • Contact Material: beryllium copper
  • Contact Finish: gold
  • Voltage Rating: 25VDC
  • Mounting Type: SMD (SMT)
  • Body Material: polyphthalamide (PPA)
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Actuator Level: flush, recessed
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Package: tape and reel
  • Standard Package: 1,000
