Same model may have multiple batches, images only for reference.

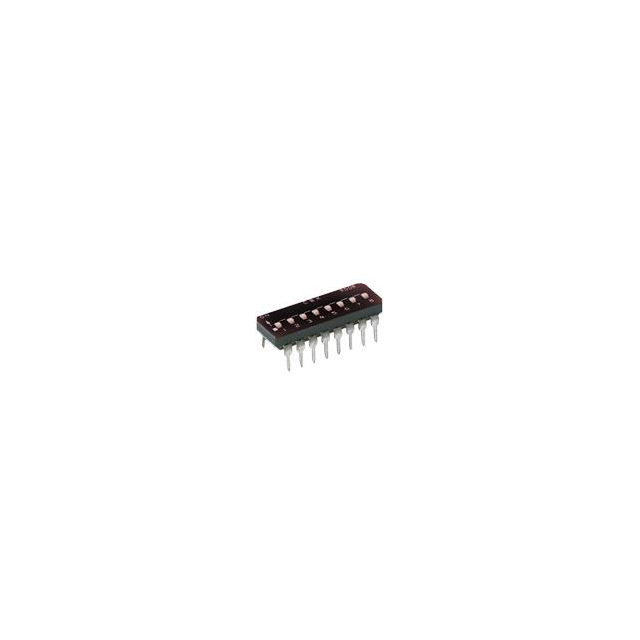

SD08H1SBDR Real Image
Same model may have multiple batches, images only for reference.

SD08H1SBDR

Part No SD08H1SBDR
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V  /  Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD08H1SBDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tape & Reel (TR)
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.165" (4.20mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.858" (21.80mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD08H1
Other Names -SD08H1SBDR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233835-SD08H1SBDR
Ultra Librarian 3D Model Ultra Librarian SD08H1SBDR CAD Model

Description

The SD08H1SBDR is a DIP switch manufactured by C&K.

  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull-Wing
  • Contact Finish: Gold
  • Mounting Type: Surface-Mount
  • Standard Package: 1,000
  • ECCN: EAR99
