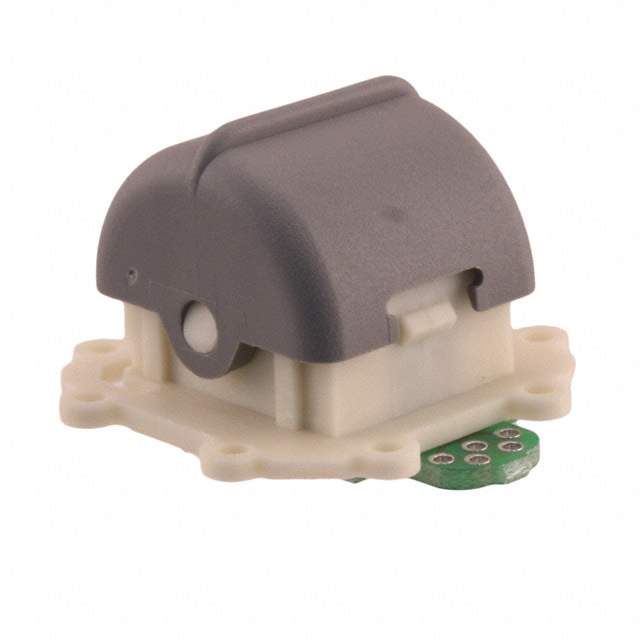

SR3S 02 GY 5N/5N 01 R00 M Real Image
Same model may have multiple batches, images only for reference.

SR3S 02 GY 5N/5N 01 R00 M

Part No SR3S 02 GY 5N/5N 01 R00 M
Manufacturer C&K Components
Catalog Navigation Switches, Joystick
Description SWITCH THUMBWHEEL ROCKER 7MA 12V / Thumbwheel, 1 - Axis Digital (Mechanical Switch) Output
Datasheet
SR3S 02 GY 5N/5N 01 R00 M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Navigation Switches, Joystick
Mfr C&K
Series SR3
Package Bulk
Product Status Obsolete
Type Thumbwheel, 1 - Axis
Actuator Type Rocker
Switch Function 2-Way Directional
Output Digital (Mechanical Switch)
Current Rating (Amps) 7mA (DC)
Voltage Rating - DC 12 V
Mounting Type Panel Mount
Termination Style Bare PCB
Temperature Range - Operating -35°C ~ 70°C
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Gray Actuator
Mechanical Life 1,000,000 Cycles
Operating Force 500gf
Other Names SR3S02GY5N/5N01R00M,CKN9521,*SR3S 02 GY 5N/5N 01 R00 M,890003-0002
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
Win Source Part Number 1233400-SR3S 02 GY 5N/5N 01 R00 M
Ultra Librarian 3D Model Ultra Librarian SR3S 02 GY 5N/5N 01 R00 M CAD Model

Description

C&K's 1233400-SR3S 02 GY 5N/5N 01 R00 M is a thumbwheel 1-axis navigation switch with a gray actuator.

  • Termination Style: Bare PCB
  • Ingress Protection: IP65
  • Voltage Rating: 12 V
  • Current Rating: 7mA (DC)
  • Switch Function: 2-Way Directional
  • Actuator Type: Rocker
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 500gf
  • Mounting: Panel Mountable
  • Temperature Range: -35°C to 70°C
  • Status: Obsolete
  • Standard Package: 1 unit
  • Other Names: SR3S02GY5N/5N01R00M, CKN9521, 890003-0002
