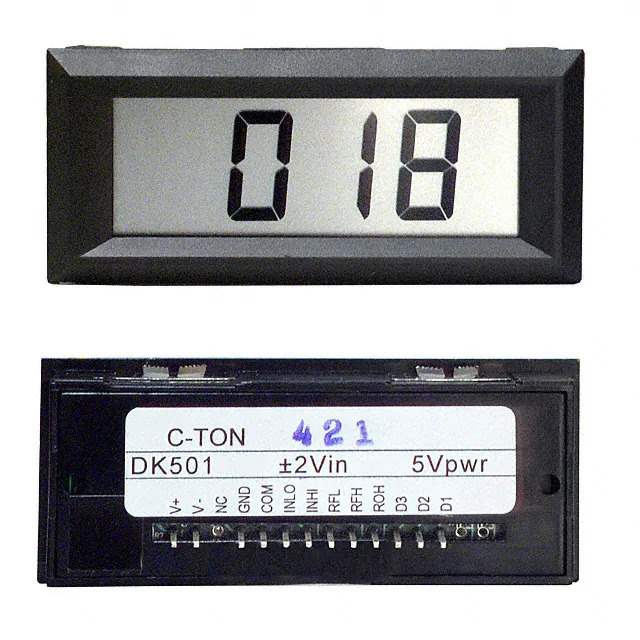

DK501 Real Image
Same model may have multiple batches, images only for reference.

DK501

Part No DK501
Manufacturer C-TON Industries
Catalog Panel Meters
Description VOLTMETER 2VDC LCD PANEL MOUNT / Voltmeter LCD - Black Characters Display Panel Mount
Datasheet
DK501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls - Panel Meters
Mfr C-TON Industries
Series DK500
Package Bulk
Product Status Active
Type Voltmeter
Measuring Type Voltage
Measuring Range ±2VDC
Display Type LCD - Black Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.472" (12.00mm)
Output Type Reference
Voltage - Supply 5VDC
Panel Cutout Dimensions Rectangular - 58.40mm x 22.40mm
Mounting Type Panel Mount
Termination Style PC Pin
Temperature Range - Operating 0°C ~ 50°C
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 868800-DK501
Ultra Librarian 3D Model Ultra Librarian DK501 CAD Model

Description

The C-TON Industries 868800-DK501 is a panel meter specifically designed as a voltmeter.

  • Type: Voltmeter
  • Termination Style: PC Pin
  • Package: Bulk (1 piece)
  • Series: Not specified
  • Features: Not specified
  • Ingress Protection: Not specified
  • Weight: Not provided
  • Panel Cutout: Rectangular (58.40mm x 22.40mm)
  • Display: LCD (Black Characters)
  • Display Height: 0.472" (12.00mm)
  • Measuring Range: ±2VDC
  • Supply Voltage: 5VDC
  • Mounting: Panel Mount
  • Operating Temperature: 0°C to 50°C
  • ECCN: EAR99
  • HTSUS: 9030.33.3800
  • Status: Active
  • REACH: Unaffected
