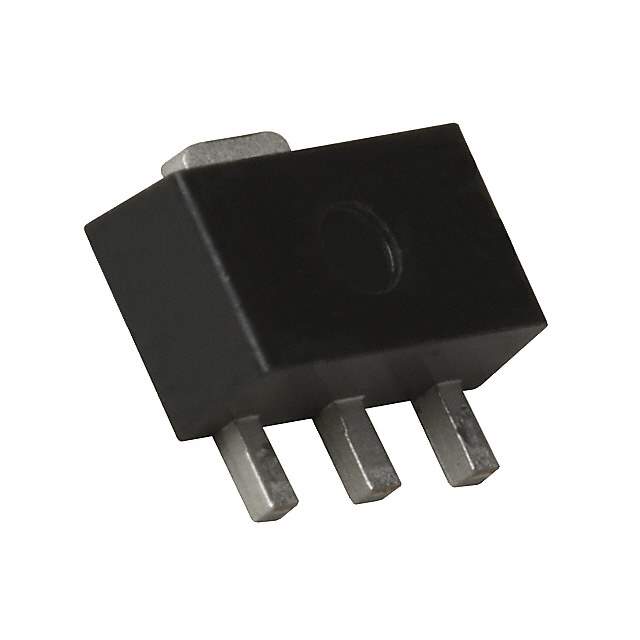

NE85634-T1-A Real Image
Same model may have multiple batches, images only for reference.

NE85634-T1-A

Part No NE85634-T1-A
Manufacturer CEL
Catalog RF Transistors (BJT)
Description RF TRANSISTOR NPN SOT-89
Datasheet
NE85634-T1-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 12V
Frequency - Transition 6.5GHz
Noise Figure (dB Typ @ f) 1.1dB @ 1GHz
Gain 9dB
Maximum Power Dissipation 2W
Typical Gain (hFE) (Min) 50 @ 20mA, 10V
Maximum Current Collector 100mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 1082938-NE85634-T1-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NE85634-T1-A CAD Model

Description

The NE85634-T1-A is a discontinued (EOL) NPN transistor from CEL.

  • Transistor Type: NPN
  • Maximum Collector-Emitter Breakdown Voltage: 12V
  • Maximum Power Dissipation: 2W
  • Gain: 9dB
  • Noise Figure: 1.1dB @ 1GHz
  • Typical Gain: 50 @ 20mA and 10V
  • Package: SOT-89
  • Maximum Collector Current: 100mA
