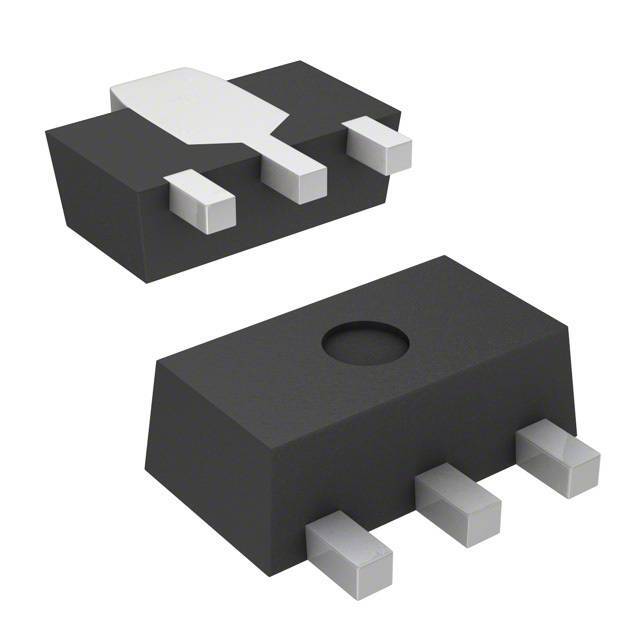

Same model may have multiple batches, images only for reference.
NESG260234-T1-AZ CEL
Same model may have multiple batches, images only for reference.

NESG260234-T1-AZ

Part No NESG260234-T1-AZ
Manufacturer CEL
Catalog RF Transistors (BJT)
Description TRANS NPN 460MHZ SOT-89
Datasheet
NESG260234-T1-AZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 9.2V
Maximum Power Dissipation 1.9W
Typical Gain (hFE) (Min) 80 @ 100mA, 3V
Maximum Current Collector 600mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 3-PowerMiniMold
Win Source Part Number 124635-NESG260234-T1-AZ
Family Name NESG260234
Introduction Date August 25, 2005
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NESG260234-T1-AZ CAD Model

Description

The CEL NESG260234-T1-AZ is a NPN transistor that is part of the NESG260234 family.

  • Supply and Demand Status: Limited
  • Maximum Current Collector: 600mA
  • Collector-Emitter Breakdown Voltage: 9.2V
  • Typical Gain (hFE): 80 @ 100mA, 3V
  • Maximum Power Dissipation: 1.9W
  • Operating Temperature Range: 150°C (TJ)
The NESG260234-T1-AZ is an excellent choice for any electronic device manufacturer looking for a reliable and efficient NPN transistor.
