Same model may have multiple batches, images only for reference.

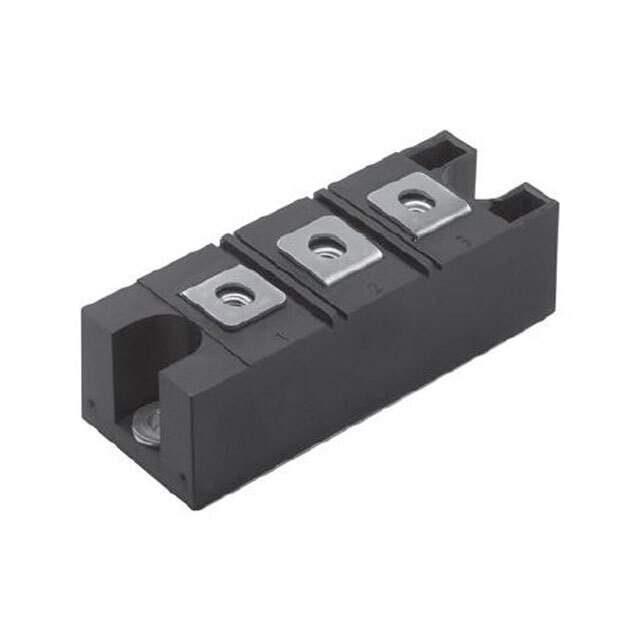

VS-VSKCS403/100 Real Image
Same model may have multiple batches, images only for reference.

VS-VSKCS403/100

Part No VS-VSKCS403/100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 200A ADDAPAK / Rectifier Diode Schottky 100V 400A 3-Pin ADD-A-PAK
Datasheet
VS-VSKCS403/100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 200A
Voltage - Forward (Vf) (Maximum) @ If 990mV @ 200A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 6mA @ 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Chassis Mount
Package ADD-A-PAK (3)
Manufacturer Package ADD-A-PAK
Win Source Part Number 799241-VS-VSKCS403/100
Popularity Medium
Supply and Demand Status Limited
Family Name VS-VSKCS403/100
ECCN EAR99
Country of Origin India
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-VSKCS403/100 CAD Model

Description

The VS-VSKCS403/100 diode from Vishay is a fast recovery diode with a current of 200mA (Io).

  • Package: ADD-A-PAK (3)
  • Mounting: Chassis
  • Temperature Range: -55°C to 175°C
  • Current Average Rectified (Io) (per diode): 200A
  • Voltage Forward (Vf) (Maximum) @ If: 990mV @ 200A
  • Voltage DC Reverse (Vr) (Maximum): 100V
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • ECCN: EAR99
