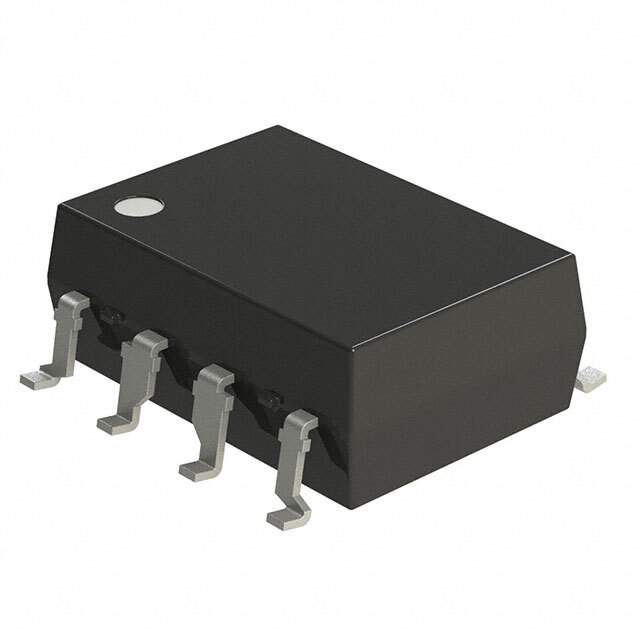

The PS9551AL4-E3-AX is a Photocoupler from CEL (California Eastern Laboratories). It's designed to provide electrical isolation between circuits while transferring signals using light. This ensures that high-voltage or noisy circuits do not interfere with sensitive low-voltage circuits.

Applications:

• Inverter Control
• Programmable Logic Controllers (PLCs)
• Factory Automation
• Servo Motor Control
• Power Supplies

Features:

• High Isolation Voltage: Offers a high isolation voltage rating, providing robust protection against voltage transients.
• High-Speed Response: Features a fast response time, enabling quick signal transmission.
• Low Input Current: Requires a minimal input current to activate the output.
• Compact Package: Designed in a small form factor for space-saving applications.
• Safety Standards Compliance: Meets relevant safety standards for electrical isolation.
• Surface Mount Technology (SMT): Suitable for surface mount assembly.

Benefits:

• Enhanced Safety: Prevents high-voltage circuits from damaging low-voltage circuits.
• Improved Signal Integrity: Reduces noise and interference in signal transmission.
• Energy Efficiency: Low input current contributes to energy-efficient designs.
• Space Savings: Compact package allows for use in densely populated circuit boards.
• Reliable Performance: Provides consistent and reliable signal transfer.

Additional Details:

The PS9551AL4-E3-AX photocoupler is engineered to provide a high level of electrical isolation, ensuring the safety and reliability of electronic systems. It is often used in applications where sensitive control circuits need to be isolated from high-power circuits. The fast response time enables quick and accurate signal transfer, making it suitable for high-speed control systems. The low input current requirement helps to reduce power consumption, which is particularly important in battery-powered applications. The compact package allows for use in space-constrained applications, such as handheld devices and densely populated circuit boards. Compliance with relevant safety standards ensures that the photocoupler meets the necessary requirements for electrical isolation and safety. Using surface mount technology allows for efficient and automated assembly, reducing manufacturing costs and improving reliability. Datasheet verification of isolation voltage, CTR and switching speed is required to confirm precise performance parameters.
